Technical Specifications
E-Switch TL1265YQSCLR technical specifications.
General
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Illumination Color
Yellow
Illumination Type
LED, Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
500000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
160gf
Packaging
Bulk
RoHS Compliant
Yes
Series
TL1265
Size
7mm
Switch Function
Off-Mom
Switch Travel
0.2mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1265YQSCLR Datasheet
Download the complete datasheet for E-Switch TL1265YQSCLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

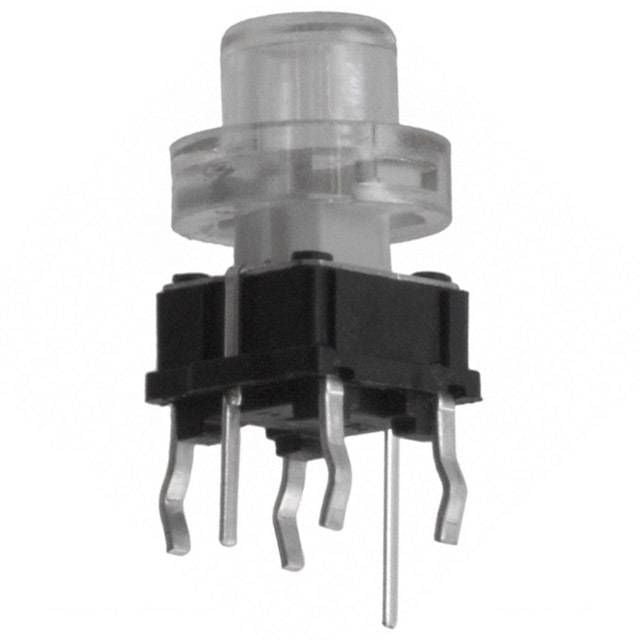

Product Images
