E-Switch
TL3300AF260Q
Keypad Switch, SPST, Momentary, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Surface Mount-straight
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL3300AF260Q technical specifications.
General
Package/Case
SMD/SMT
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Surface Mount
Operating Force
260gf
Package Quantity
500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TL3300
Switch Function
Off-Mom
Switch Travel
0.35mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3300AF260Q Datasheet
Download the complete datasheet for E-Switch TL3300AF260Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

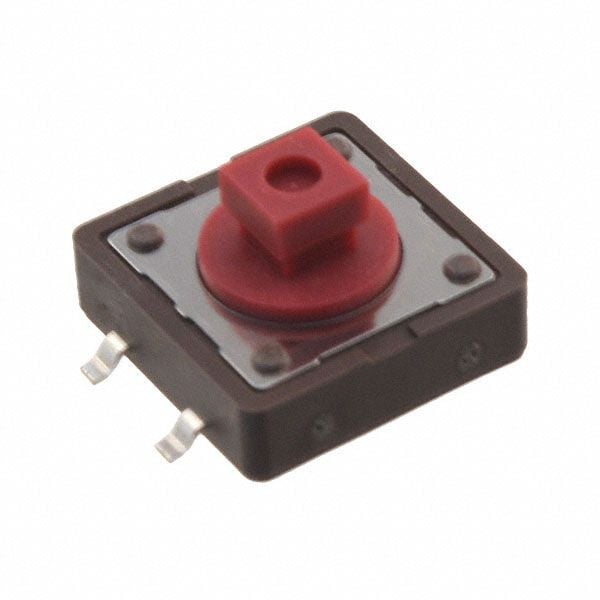

Product Images
