Technical Specifications
E-Switch TL3300DF160Q technical specifications.
General
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Mechanical Life
200000Cycles
Min Operating Temperature
-25°C
Mount
Surface Mount
Operating Force
160gf
Package Quantity
700
Packaging
Cut Tape
RoHS Compliant
Yes
Series
TL3300
Switch Function
Off-Mom
Switch Travel
0.35mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3300DF160Q Datasheet
Download the complete datasheet for E-Switch TL3300DF160Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

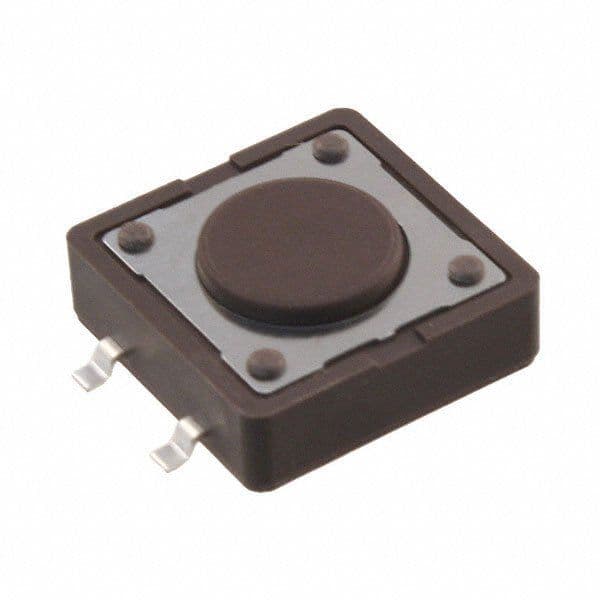

Product Images
