Surface mount tactile switch featuring a 6mm size and SPST-NO throw configuration. Offers a 50mA current rating and 12V DC voltage rating, with a 260gf operating force and 0.25mm switch travel. Constructed with bronze, silver contacts and a nylon actuator, it boasts an electrical and mechanical life of 100,000 cycles. This non-illuminated, lead-free, and RoHS compliant component is supplied on tape and reel.
Storage6mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL3301AF260QJ technical specifications.
General
Actuator Length
1.4mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Mount
Surface Mount
Operating Force
260gf
Orientation
Straight
Package Quantity
1100
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TL3301
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
J-Bend
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3301AF260QJ Datasheet
Download the complete datasheet for E-Switch TL3301AF260QJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

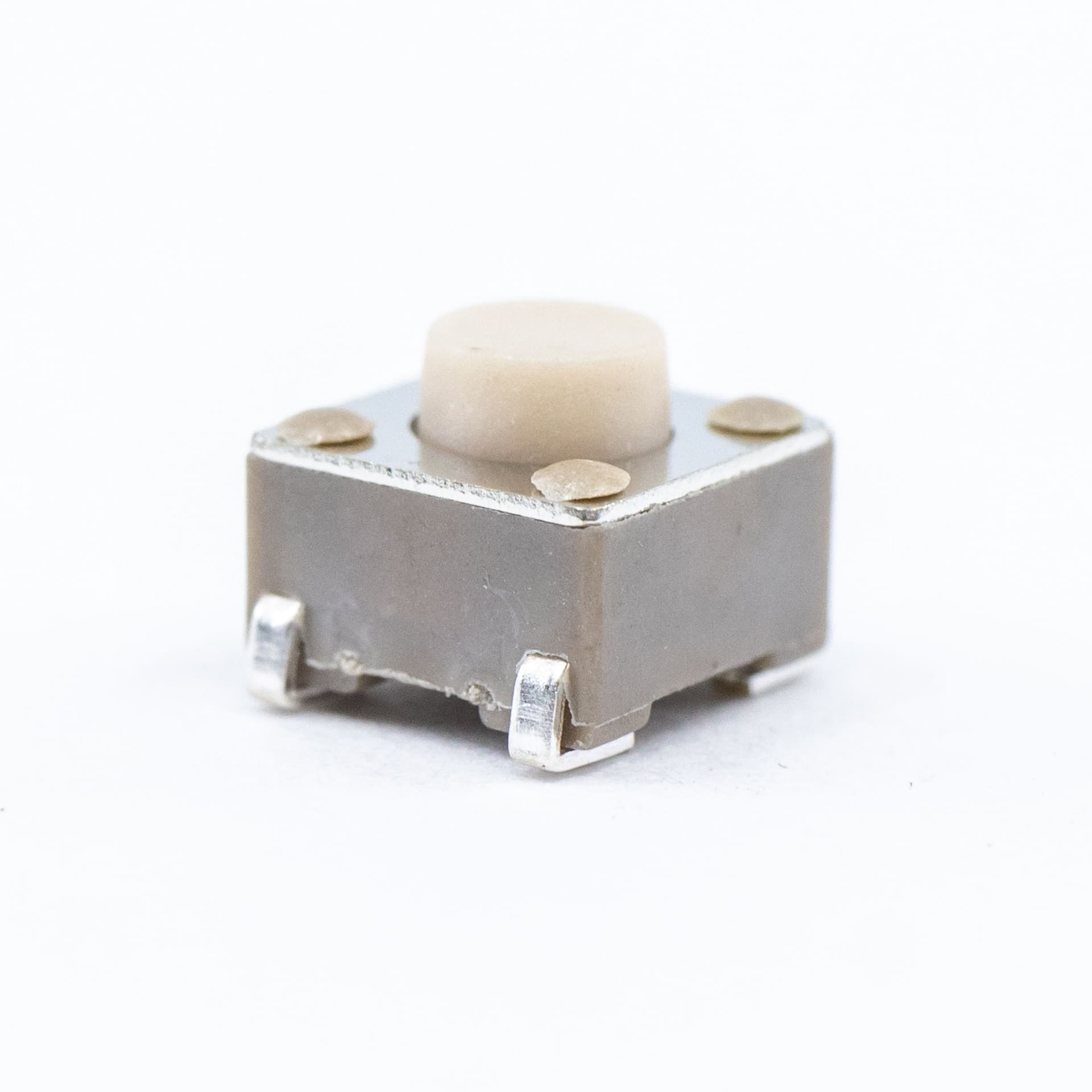

Product Images
