Storage6mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL3301BF260QG technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Surface Mount
Operating Force
260gf
Package Quantity
90
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
TL3301
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3301BF260QG Datasheet
Download the complete datasheet for E-Switch TL3301BF260QG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

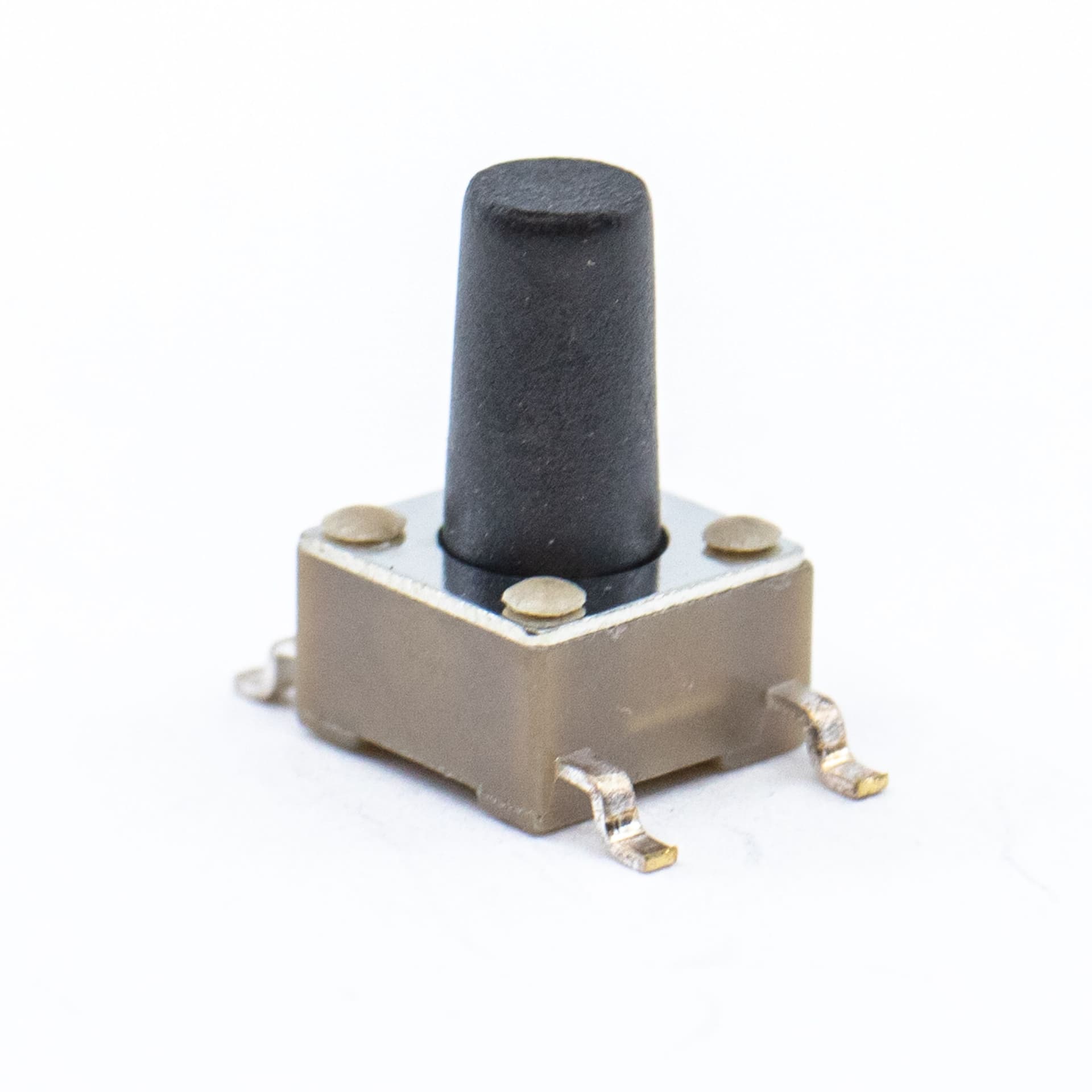

Product Images
