SPST tactile switch featuring a 6mm round button with a 4.4mm nylon actuator. This surface-mount component offers a 50mA current rating at 12VDC, with silver-plated bronze contacts and a 0.25mm travel. Designed for 100,000 electrical and mechanical cycles, it operates within a -25°C to 70°C temperature range and has a 1.57N (160gf) operating force. Terminated with gull wing leads, this RoHS compliant switch is supplied in tape and reel packaging.
Storage6mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL3301CF160QG technical specifications.
General
Actuator Length
4.4mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Current Rating
50mA
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
160gf
Orientation
Straight
Package Quantity
700
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TL3301
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3301CF160QG Datasheet
Download the complete datasheet for E-Switch TL3301CF160QG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

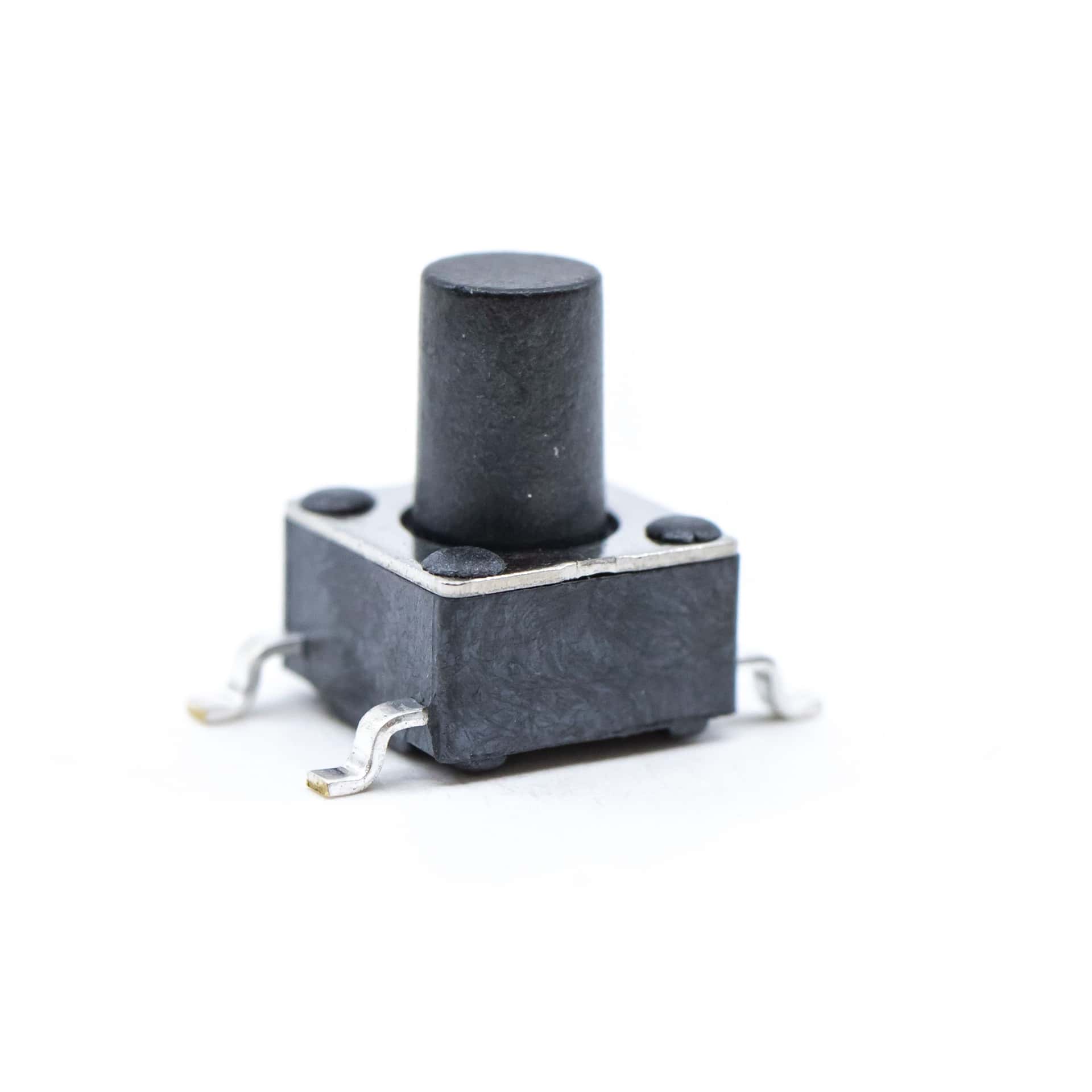

Product Images
