E-Switch
TL3302BF180QJ
Pushbutton Switch, SPST, On-off, Vertical, 0.05A, 50VDC, Solder Terminal, Surface Mount-straight
Storage3.5mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL3302BF180QJ technical specifications.
General
Actuator Material
Polyphenylene
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
40000Cycles
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Force
180gf
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TL3302
Size
3.5mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
J-Bend
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3302BF180QJ Datasheet
Download the complete datasheet for E-Switch TL3302BF180QJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

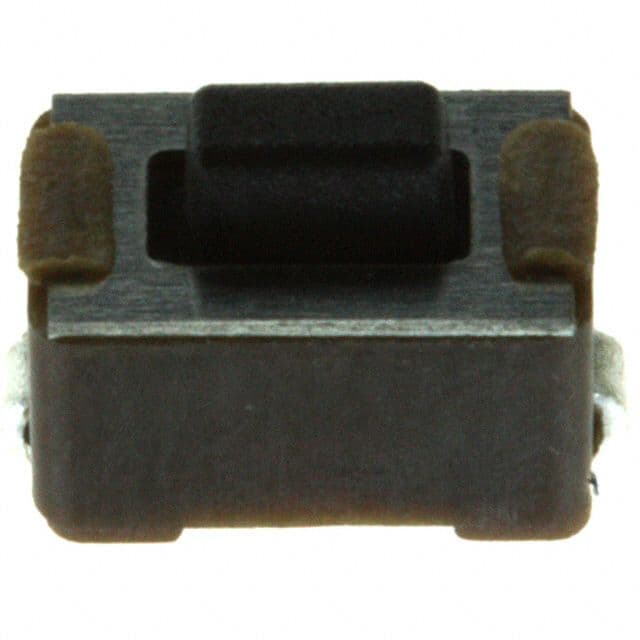

Product Images
