Technical Specifications
E-Switch TL3313AF250QG technical specifications.
General
Actuator Type
Standard
Contact Plating
Silver
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Force
250gf
Package Quantity
4000
Packaging
Cut Tape
RoHS Compliant
No
Series
TL3313
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
Compliance
RoHS
Not Compliant
Datasheet
E-Switch TL3313AF250QG Datasheet
Download the complete datasheet for E-Switch TL3313AF250QG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

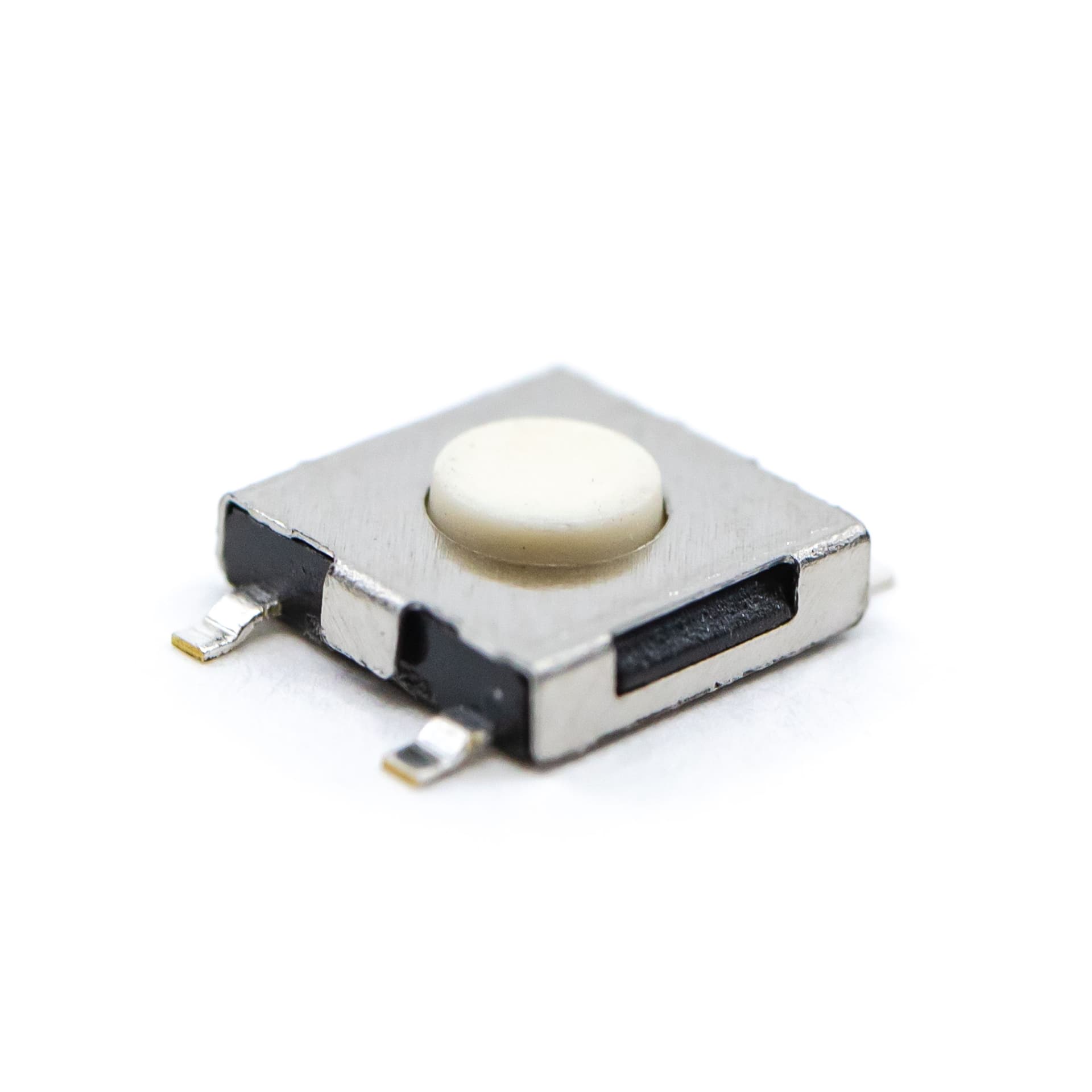

Product Images
