E-Switch
TL3700AF160QG
Keypad Switch, 1 Switches, SPST, Momentary, 0.02A, 15VDC, 2.06N, Solder Terminal, Surface Mount-straight, HALOGEN FREE AND ROHS COMPLIANT
PackageSMD/SMT
Current Rating20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
E-Switch TL3700AF160QG technical specifications.
General
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Plating
Silver
Current Rating
20mA
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Force
160gf
Package Quantity
8000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TL3700
Switch Function
Off-Mom
Switch Travel
0.15mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
15V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL3700AF160QG Datasheet
Download the complete datasheet for E-Switch TL3700AF160QG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

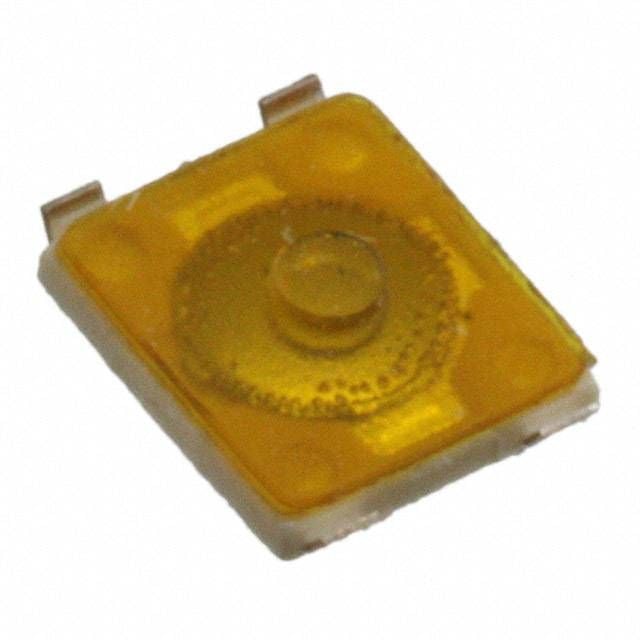

Product Images
