E-Switch
TL58XF160Q
Keypad Switch, SPST, Momentary, 0.05A, 50VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-straight,
PackageRadial
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL58XF160Q technical specifications.
General
Actuator Length
2.2mm
Actuator Material
PBT, Polybutylene
Actuator Type
Standard
Package/Case
Radial
Current Rating
50mA
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Max Voltage Rating (DC)
15V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
160gf
Orientation
Right Angle
Package Quantity
700
Packaging
Box
RoHS Compliant
Yes
Series
TL58
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL58XF160Q Datasheet
Download the complete datasheet for E-Switch TL58XF160Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

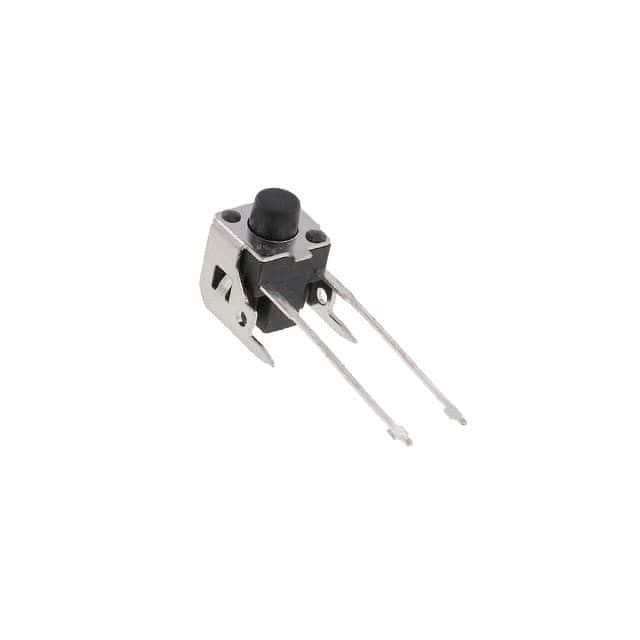

Product Images
