Technical Specifications
E-Switch TL6100CF300QP technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
7.2mm
Max Operating Temperature
85°C
Mechanical Life
500000Cycles
Min Operating Temperature
-40°C
Mount
Sealed, Through Hole
Operating Force
300gf
Orientation
Vertical
Package Quantity
60
Packaging
Rail/Tube
Series
TL6100
Switch Function
Off-Mom
Switch Travel
0.5mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
E-Switch TL6100CF300QP Datasheet
Download the complete datasheet for E-Switch TL6100CF300QP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

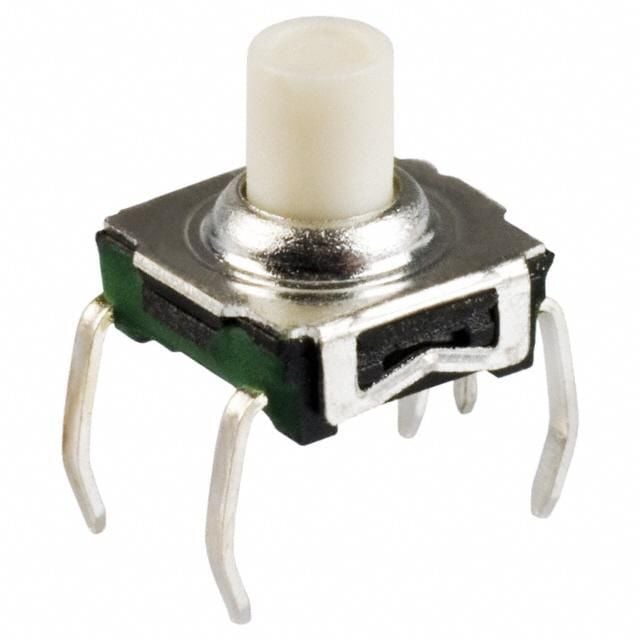

Product Images
