Technical Specifications
E-Switch TS10100F070P technical specifications.
General
Current Rating
100mA
Electrical Life
30000Cycles
Max Operating Temperature
55°C
Min Operating Temperature
-15°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
48V
Mechanical Life
100000Cycles
Mount
Through Hole
Operating Force
70gf
Orientation
Straight
Packaging
Bulk
Series
TS1
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
48V
Compliance
RoHS
Compliant
Datasheet
E-Switch TS10100F070P Datasheet
Download the complete datasheet for E-Switch TS10100F070P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

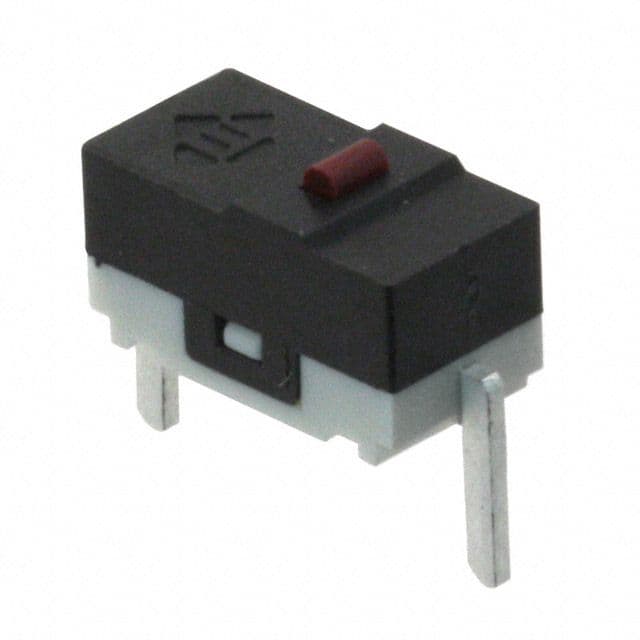

Product Images
