Technical Specifications
E-T-A 1410-L210-L2F1-S02-0.8A technical specifications.
General
Actuator Type
Push to Reset
Approvals
EN
Breaker Type
Thermal
Current Rating
800mA
Height
9.6mm
Lead Free
Lead Free
Length
33mm
Max Operating Temperature
100°C
Min Operating Temperature
-20°C
Mount
PCB
Number of Poles
1
Package Quantity
10
Packaging
Tray
RoHS Compliant
Yes
Series
1410-L2
Termination
PCB
Voltage Rating (AC)
250V
DC Rated Voltage
50V
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
E-T-A 1410-L210-L2F1-S02-0.8A Datasheet
Download the complete datasheet for E-T-A 1410-L210-L2F1-S02-0.8A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

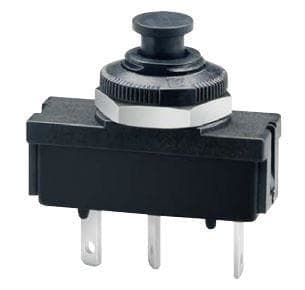

Product Images
