Single-pole thermal circuit breaker with a 6.3A current rating and 250V AC / 50V DC voltage rating. Features a push-to-reset actuator and through-hole mounting for PCB applications. Operates within a temperature range of -20°C to 100°C. RoHS compliant and manufactured with lead-free materials.
Current Rating6.3A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
E-T-A 1410-L210-L2F1-S02-6.3A technical specifications.
General
Actuator Type
Push to Reset
Approvals
EN
Breaker Type
Thermal
Current Rating
6.3A
Height
9.6mm
Lead Free
Lead Free
Length
33mm
Max Operating Temperature
100°C
Min Operating Temperature
-20°C
Mount
Through Hole, PCB
Number of Poles
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
1410-L2
Termination
PCB
Voltage Rating (AC)
250V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
E-T-A 1410-L210-L2F1-S02-6.3A Datasheet
Download the complete datasheet for E-T-A 1410-L210-L2F1-S02-6.3A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

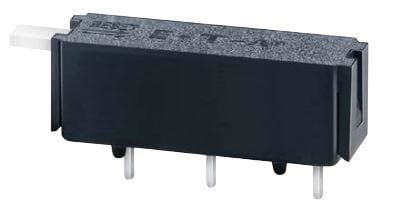

Product Images
