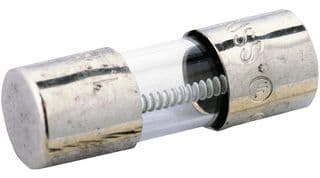

Time delay electric fuse, 500mA current rating, 250VAC voltage rating, with a 35A interrupting rating. Features a 5x15mm fuse size, nickel contact plating, and a 540mR DC cold resistance. Designed for inline or holder mounting with clip terminations. RoHS compliant and UL/CSA approved.
Current500mA
Resistance540mR
Current Rating500mA
MountingHolder
Quick Jump:
Technical Specifications
Eaton BK/C519-500-R technical specifications.
General
Approvals
UL, CSA
Blow Characteristic
TIME DELAY
Contact Plating
Nickel
Current
500mA
Current Rating
500mA
DC Cold Resistance
540mR
Diameter
5.2mm
Fuse Current
500mA
Fuse Size
5mm X 15mm
Lead Free
Lead Free
Length
0.571inch
Max Voltage Rating (AC)
250V
Mount
Holder
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
540mR
RoHS Compliant
Yes
Series
C519
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.045856oz
Compliance
RoHS
Compliant
Datasheet
Eaton BK/C519-500-R Datasheet
Download the complete datasheet for Eaton BK/C519-500-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
