In-line fuse holder with a 30A current rating and 32V voltage rating. Features a yellow nylon body, copper contacts with tin plating, and illuminated functionality. Designed for crimp termination and free-hanging mounting, accommodating 1/4" x 7/8" to 1 1/4" fuses. This single-circuit, single-pole accessory is supplied in bulk packaging.
Voltage32V
Voltage Rating32V
Current Rating30A
MountingFree Hanging
Quick Jump:
Technical Specifications
Eaton BK/HHB-R technical specifications.
General
Body Material
Nylon
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
Current Rating
30A
Fuse Current
30A
Fuse Size
1/4" x 7/8" ~ 1 1/4" (6.35mm x 22.2mm ~ 31.8mm)
Illumination Type
Illuminated
Lead Free
Lead Free
Mount
Free Hanging
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
Unknown
Series
HHB
Termination
Crimp
Voltage
32V
Voltage Rating
32V
Voltage Rating (AC)
32V
Weight
0.192oz
Compliance
RoHS
Compliant
Datasheet
Eaton BK/HHB-R Datasheet
Download the complete datasheet for Eaton BK/HHB-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

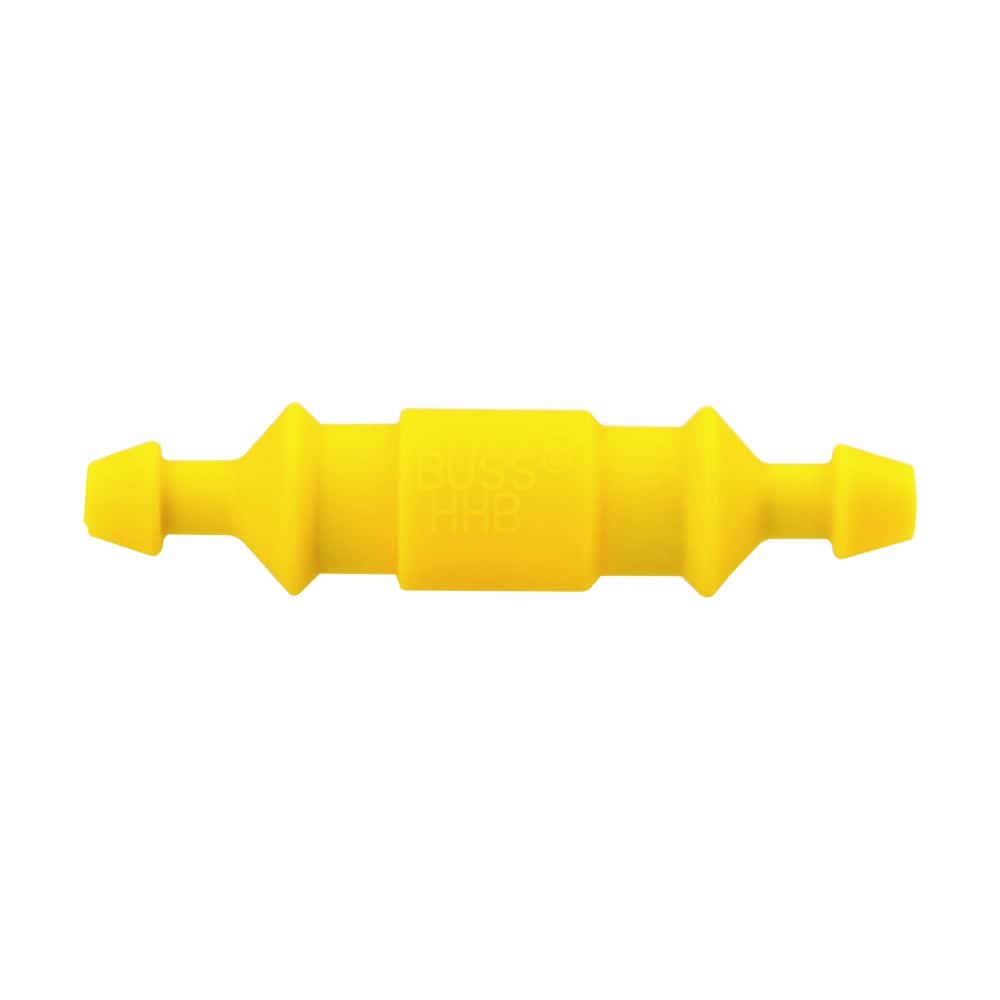

Product Images
