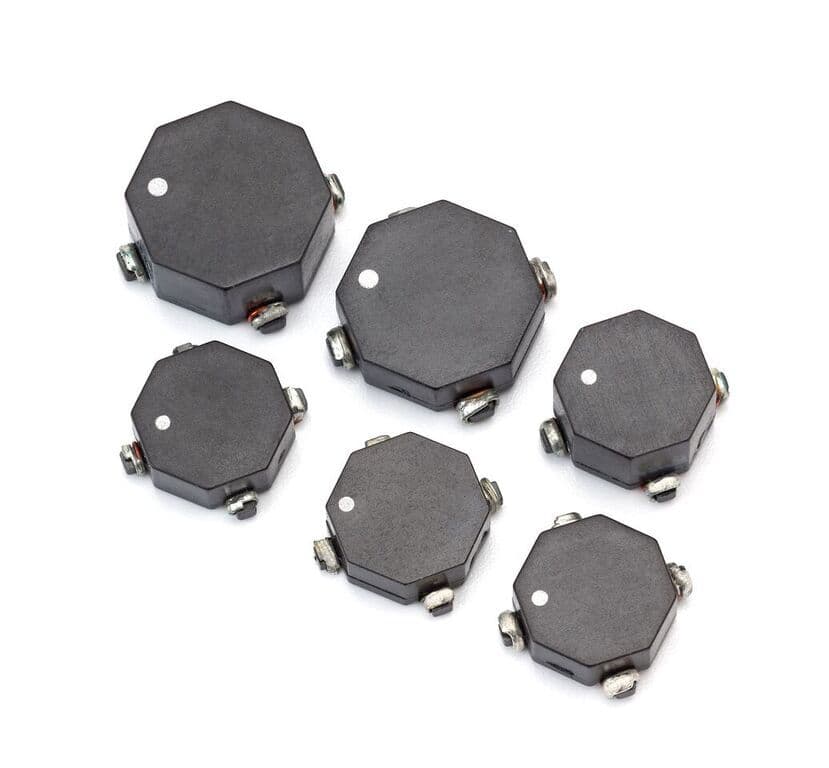

CTX33-2-R

SMD Inductor, 31.77uH/127.09uH, 1.4A, 105mR DCR, 20%

Surface mount fixed inductor featuring dual coils with a selectable inductance of 31.77µH (parallel) or 127.09µH (series). This wirewound component offers a 20% tolerance and a current rating of 1.4A at 100kHz. Constructed with ferrite and metal core materials, it exhibits a DC resistance of 105mΩ (parallel) and 420mΩ (series). Operating within a temperature range of -40°C to 85°C, it is supplied in tape and reel packaging.

PackageNonstandard

Current Rating1.4A

MountingSurface Mount

Inductance31.77uH

Quick Jump:

Technical Specifications

Eaton CTX33-2-R technical specifications.

General

Package/Case	Nonstandard
Core Material	Ferrite, Metal
Current Rating	1.4A
DC Resistance (DCR)	105mR
DC Resistance (DCR) - Parallel	105mR
DC Resistance (DCR) - Series	420mR
DC Resistance-Max	105mR
Depth	11.43mm
Height	0.235inch
Inductance	31.77uH
Inductance - Parallel	31.77uH
Inductance - Series	127.09uH
Length	11.43mm
Max DC Current	1.4A
Max Operating Temperature	85°C
Military Standard	Not
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Coils	2
Package Quantity	800
Packaging	Tape and Reel
Radiation Hardening	No
Series	OCTA-PAC®
Shielding	Unshielded
Termination	SMD/SMT
Test Frequency	100kHz
Tolerance	20%
Weight	0.064oz
Width	0.45inch
