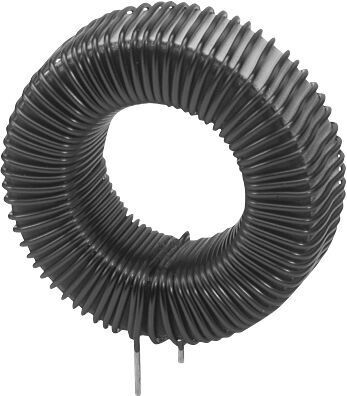

Through-hole fixed inductor featuring 50µH inductance with a 20% tolerance, designed for power applications. This radial component offers a 4.9A current rating and a low 32.6mΩ DC resistance. Operating within a -40°C to 75°C temperature range, it utilizes a powdered iron core and is supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton CTX50-2-52-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Core Material | Ferrite |
| Current Rating | 4.9A |
| DC Current | 4.9A |
| DC Resistance (DCR) | 32.6mR |
| Depth | 13.6mm |
| Diameter | 21.6mm |
| Height | 13.6mm |
| Inductance | 50uH |
| Inductance - Parallel | 50uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Lead Pitch | 11mm |
| Lead/Base Style | Radial |
| Length | 13.6mm |
| Max DC Current | 4.9A |
| Max Operating Temperature | 75°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 85 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 4.9A |
| RoHS Compliant | Yes |
| Saturation Current | 4.9A |
| Series | CTX |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.576oz |
| Width | 0.535inch |
| RoHS | Compliant |
