The DR124 Series is a fixed inductor with a ferrite core material and a shielded design. It has a current rating of 440mA and a maximum operating temperature of 125°C. The inductor is available in a nonstandard package with a surface mount termination and is packaged in tape and reel quantities of 750. It has a tolerance of 20% and a weight of 0.112oz.
PackageNonstandard
Current Rating440mA
MountingSurface Mount
Inductance1mH
Quick Jump:
Technical Specifications
Eaton DR124-102-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 440mA |
| DC Resistance (DCR) | 3.477R |
| Height | 4.5mm |
| Height - Seated (Max) | 0.177inch |
| Inductance | 1mH |
| Length | 0.492inch |
| Max DC Current | 530mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Saturation Current | 530mA |
| Series | DR124 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.112oz |
| Width | 12.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Eaton DR124-102-R Datasheet
Download the complete datasheet for Eaton DR124-102-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

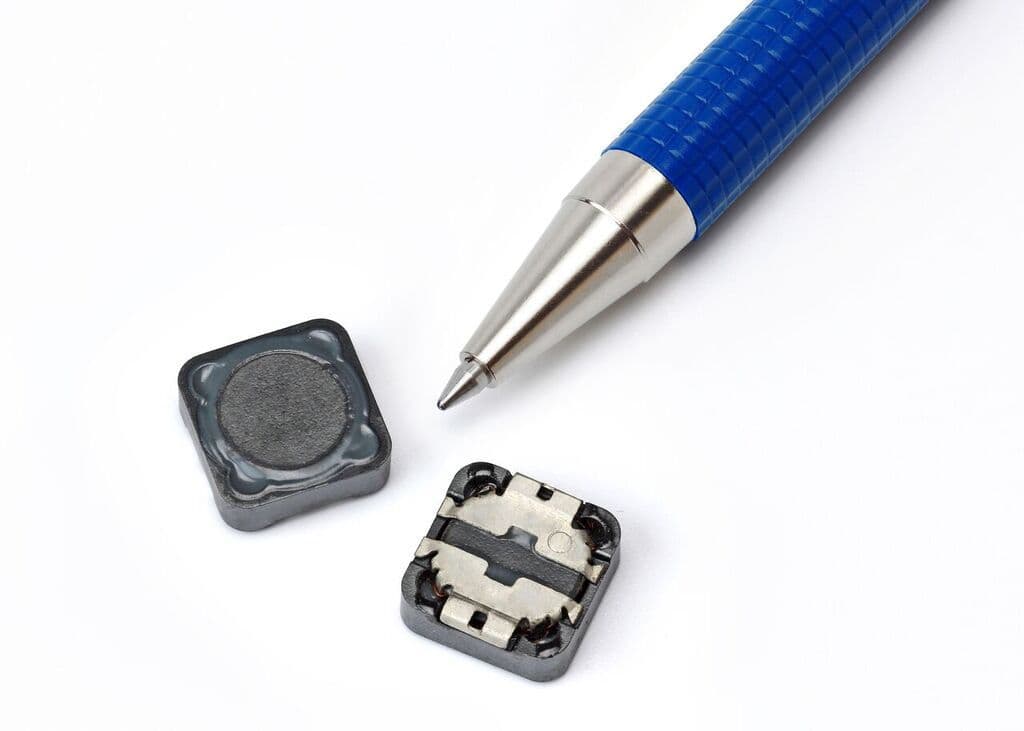

Product Images
