Surface mount general purpose power inductor featuring 33µH inductance with a 20% tolerance. This ferrite core inductor offers a rated current of 3.23A and a saturation current of 6.22A, with a low DC resistance of 60mR. Operating across a wide temperature range from -40°C to 125°C, it is shielded and RoHS compliant.
PackageNonstandard
Current Rating3.23A
MountingSurface Mount
Inductance33uH
Quick Jump:
Technical Specifications
Eaton DR127-330-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
3.23A
DC Resistance (DCR)
60mR
Depth
12.5mm
Height
8mm
Height - Seated (Max)
0.315inch
Inductance
33uH
Inductance Tolerance
20%
Inductor Type
POWER INDUCTOR
Lead Free
Lead Free
Length
12.5mm
Max DC Current
6.22A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
350
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
3.23A
Reach SVHC Compliant
No
RMS Current (Irms)
3.23A
RoHS Compliant
Yes
Saturation Current
6.22A
Self Resonant Frequency
100kHz
Series
DR
Series Resistance
60mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.208oz
Width
0.492inch
Compliance
RoHS
Compliant
Datasheet
Eaton DR127-330-R Datasheet
Download the complete datasheet for Eaton DR127-330-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

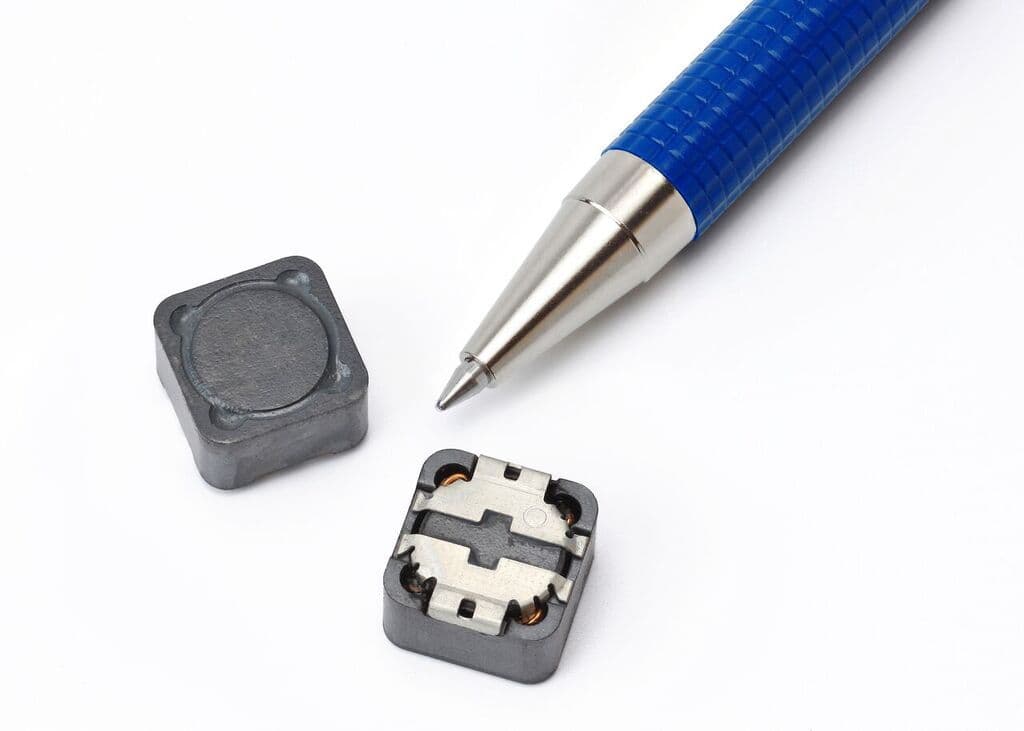

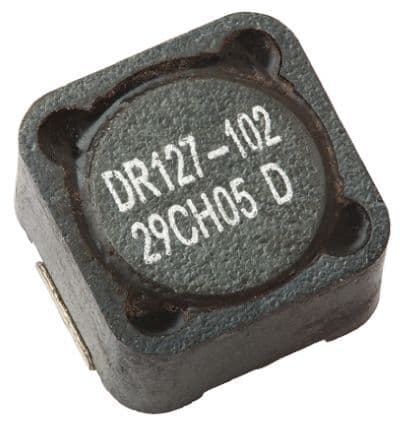

Product Images
