Surface mount fixed inductor featuring 470µH inductance with a 20% tolerance. This general-purpose ferrite core inductor offers a maximum DC current rating of 850mA and a saturation current of 1.68A. It operates within a temperature range of -40°C to 125°C and has a DC resistance of 861mΩ. The shielded component is supplied on tape and reel.
PackageNonstandard
Current Rating850mA
MountingSurface Mount
Inductance470uH
Quick Jump:
Technical Specifications
Eaton DR127-471-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
850mA
DC Current
850mA
DC Resistance (DCR)
861mR
Depth
12.5mm
Height
8mm
Height - Seated (Max)
0.315inch
Inductance
470uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
12.5mm
Max DC Current
850mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
350
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
850mA
Reach SVHC Compliant
No
RMS Current (Irms)
850mA
RoHS Compliant
Yes
Saturation Current
1.68A
Self Resonant Frequency
100kHz
Series
DR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.208oz
Width
0.492inch
Compliance
RoHS
Compliant
Datasheet
Eaton DR127-471-R Datasheet
Download the complete datasheet for Eaton DR127-471-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

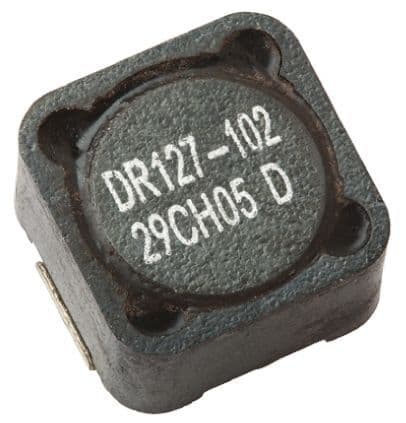

Product Images
