General purpose surface mount inductor with 68µH inductance and 20% tolerance. Features a ferrite core, shielded construction, and a rated current of 1.03A. Operates within a temperature range of -40°C to 125°C, with a DC resistance of 265mΩ. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating1.03A
MountingSurface Mount
Inductance68uH
Quick Jump:
Technical Specifications
Eaton DR74-680-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
1.03A
DC Current
1.03A
DC Resistance (DCR)
265mR
Depth
7.6mm
Height
4.35mm
Height - Seated (Max)
0.171inch
Inductance
68uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
7.6mm
Max DC Current
1.19A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1100
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
1.03A
Reach SVHC Compliant
No
RMS Current (Irms)
1.03A
RoHS Compliant
Yes
Saturation Current
1.19A
Self Resonant Frequency
100kHz
Series
DR
Series Resistance
265mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.048oz
Width
0.299inch
Compliance
RoHS
Compliant
Datasheet
Eaton DR74-680-R Datasheet
Download the complete datasheet for Eaton DR74-680-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

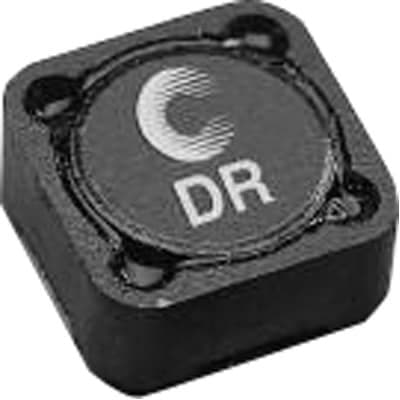

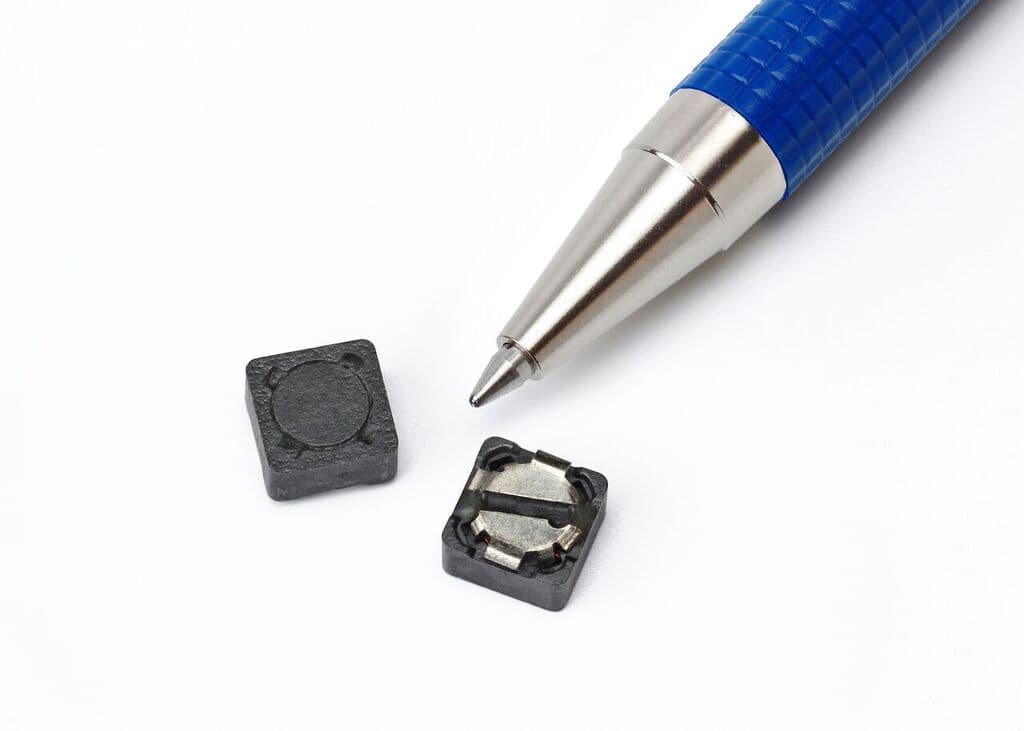

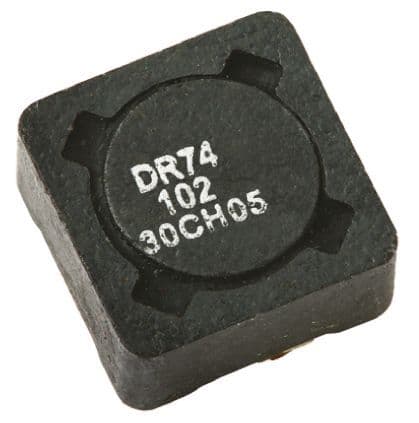

Product Images
