easy Programmable Relays, 700 Series, 110-240 Vdc, 12 digital inputs, 6 relay outputs, Includes clock and display, optional 4 analog inputs
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Eaton EASY719-AC-RC technical specifications.
General
Package/Case
Module
Depth
58mm
Input Type
DIGITAL
Length
110mm
Manufacturer Series
Easy 700
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Number of Inputs
12
Number of Outputs
6
Operating Supply Voltage
240V
Output Current
10A
Output Type
RELAY
Ratings
IP20
Reach SVHC Compliant
No
Series
EASY700 Series
Width
107.5mm
Special features
Includes clock and display, optional 4 analog inputs
Compliance
RoHS
Compliant
Datasheet
Eaton EASY719-AC-RC Datasheet
Download the complete datasheet for Eaton EASY719-AC-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

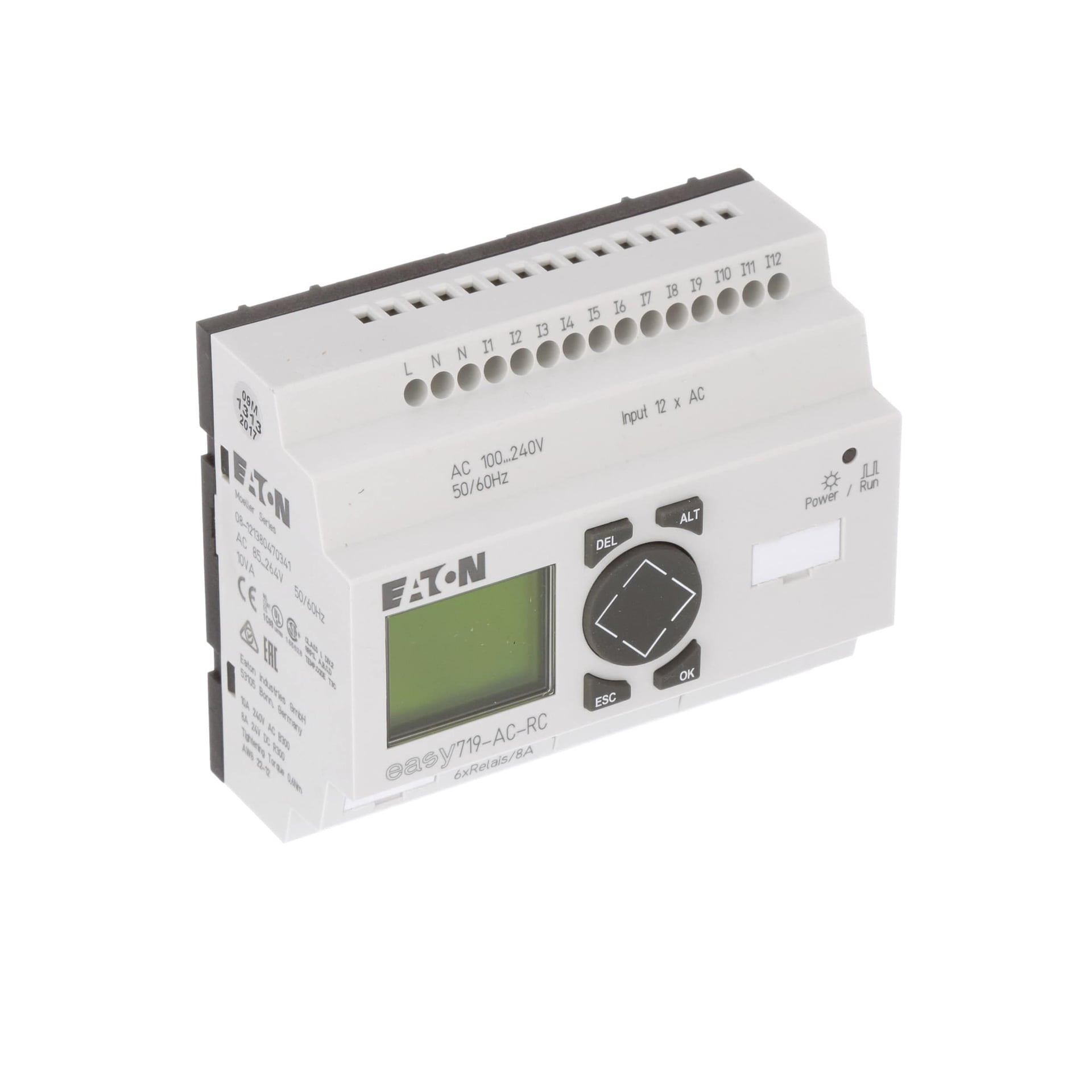

Product Images
