Time delay electrical fuse, rated for 20A and 250VAC working voltage, with a DC rated voltage of 32V. Features a 13/32 x 1-1/2 inch fuse size, 10.3mm diameter, and 38.1mm length, constructed with a fiberglass body and clip termination. This RoHS compliant fuse is designed for inline or holder mounting and holds UL, CSA, and CE approvals.
Current20A
Storage38.1mm
Voltage Rating250V
Current Rating20A
Quick Jump:
Technical Specifications
Eaton FNM-20 technical specifications.
General
| Approvals | UL, CSA, CE |
| Blow Characteristic | TIME DELAY |
| Body Material | Fiberglass |
| Current | 20A |
| Current Rating | 20A |
| Diameter | 10.3mm |
| Fuse Current | 20A |
| Fuse Size | 13/32 X 1-1/2in |
| Lead Free | Lead Free |
| Length | 38.1mm |
| Max Voltage Rating (AC) | 250V |
| Mount | Holder, Clip |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | FNM |
| Size | 38.1mm |
| Termination | Clip |
| Type | Electrical |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 32V |
| Weight | 0.304oz |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Eaton FNM-20 Datasheet
Download the complete datasheet for Eaton FNM-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

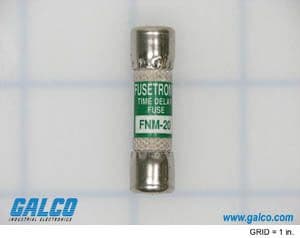

Product Images
