Surface mount fixed inductor featuring a ferrite core, 85nH inductance with a 10% tolerance, tested at 100kHz. This unshielded component offers a high current rating of 53A, a saturation current of 100A, and a low DC resistance of 0.27mR. Operating across a temperature range of -40°C to 125°C, it is supplied in tape and reel packaging.
PackageNonstandard
Current Rating53A
MountingSurface Mount
Inductance85nH
Quick Jump:
Technical Specifications
Eaton FP1006R1-R08-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
53A
DC Resistance (DCR)
0.27mR
Depth
8mm
Height
6mm
Height - Seated (Max)
0.236inch
Inductance
85nH
Length
10.2mm
Max DC Current
53A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
850
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
100A
Self Resonant Frequency
2MHz
Series
FP1006
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Weight
0.007055oz
Width
0.315inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1006R1-R08-R Datasheet
Download the complete datasheet for Eaton FP1006R1-R08-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

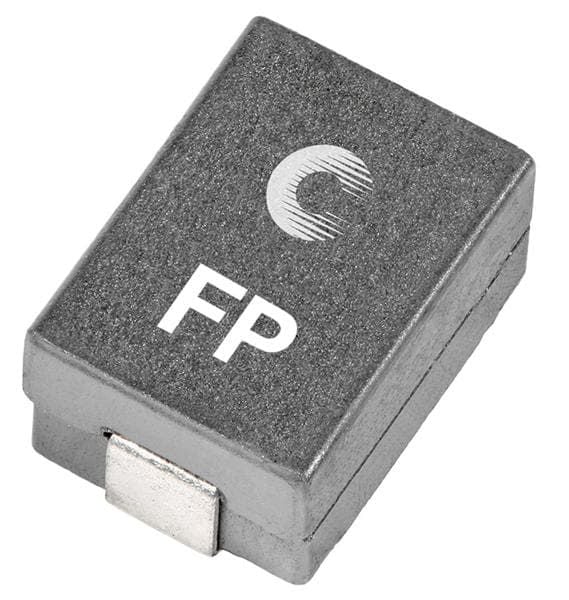

Product Images
