Eaton
FP1007R6-R47-R
Inductor Power Wirewound 0.47uH/0.338uH 10% 100KHz Ferrite 61A 0.00029Ohm DCR T/R
PackageNonstandard
Current Rating61A
MountingSurface Mount
Inductance470nH
Quick Jump:
Technical Specifications
Eaton FP1007R6-R47-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
61A
DC Resistance (DCR)
0.29mR
Depth
8mm
Height
0.276inch
Height - Seated (Max)
0.276inch
Inductance
470nH
Length
0.413inch
Max DC Current
61A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
RoHS Compliant
Yes
Saturation Current
23.5A
Series
FLAT-PAC™, FP1007R6
Shielding
Unshielded
Test Frequency
100kHz
Tolerance
10%
Width
0.315inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1007R6-R47-R Datasheet
Download the complete datasheet for Eaton FP1007R6-R47-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

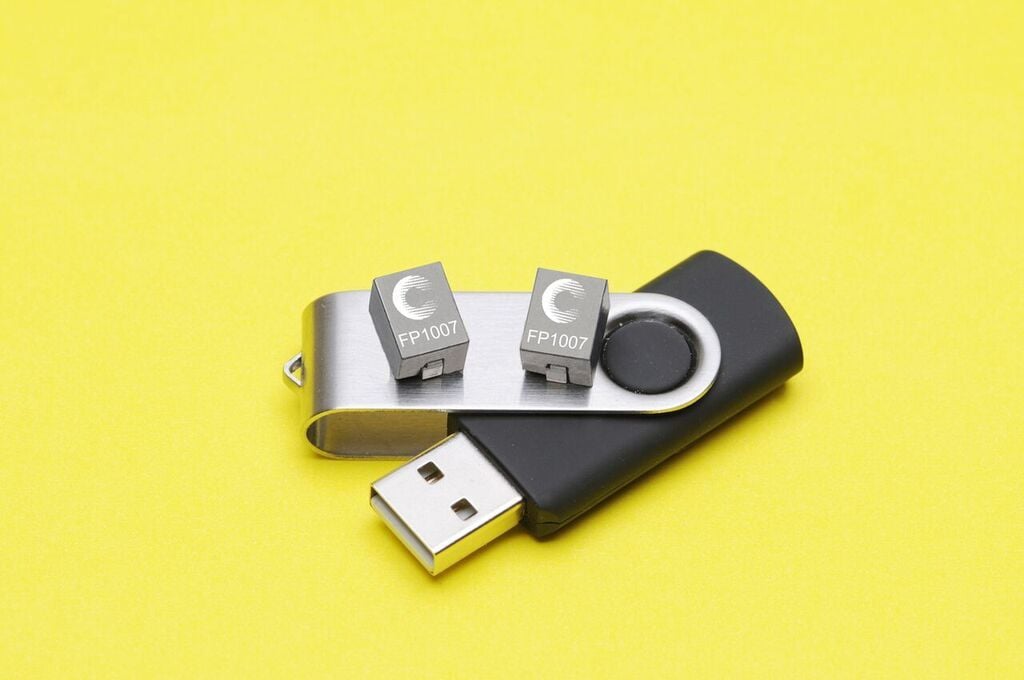

Product Images
