Surface mount fixed inductor with 300nH inductance and 10% tolerance, tested at 100kHz. Features a ferrite core, 55A current rating, and 0.29mR DC resistance. Operates within a -40°C to 125°C temperature range. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating55A
MountingSurface Mount
Inductance300nH
Quick Jump:
Technical Specifications
Eaton FP1107R1-R30-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
55A
DC Resistance (DCR)
0.29mR
Depth
7.2mm
Height
7.5mm
Height - Seated (Max)
0.295inch
Inductance
300nH
Lead Free
Lead Free
Length
11mm
Max DC Current
35A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
640
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
35A
Self Resonant Frequency
2MHz
Series
FP1107
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Weight
0.016oz
Width
0.283inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1107R1-R30-R Datasheet
Download the complete datasheet for Eaton FP1107R1-R30-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

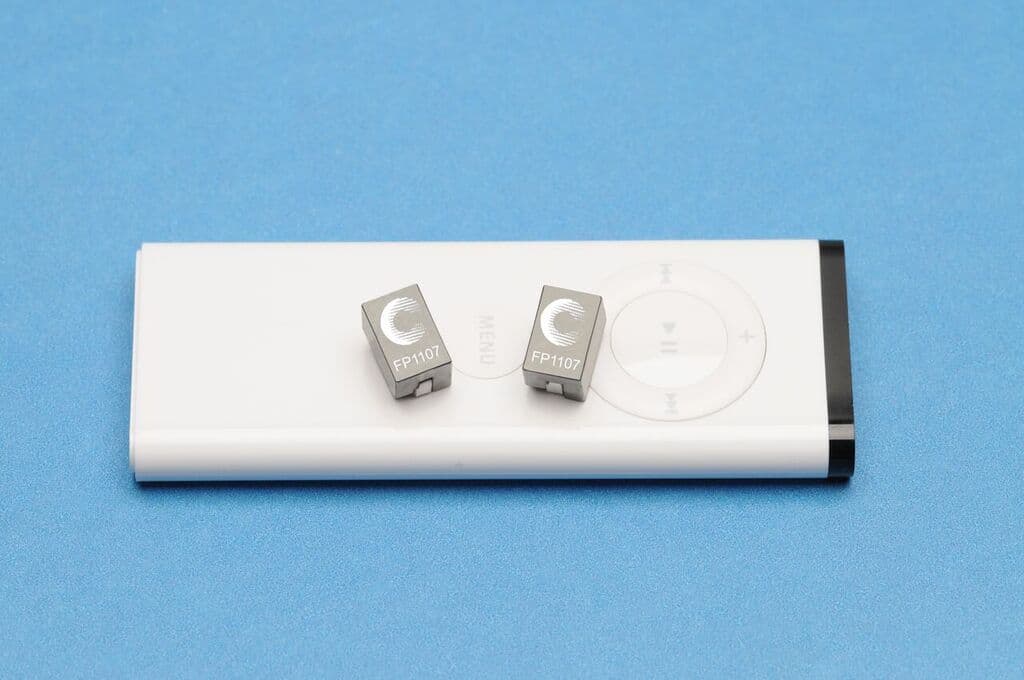

Product Images
