Surface mount wirewound power inductor with 311nH inductance, 35A DC current rating, and 44A saturation current. Features a ferrite core, 0.42mΩ DC resistance, and 10% tolerance at 100kHz. Operates from -40°C to 125°C, packaged in tape and reel.
PackageNonstandard
Current Rating35A
MountingSurface Mount
Inductance311nH
Quick Jump:
Technical Specifications
Eaton FP1109-R33-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
35A
DC Current
35A
DC Resistance (DCR)
0.42mR
Depth
11.2mm
Height
9mm
Height - Seated (Max)
0.354inch
Inductance
311nH
Length
11.2mm
Max DC Current
43A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
350
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
44A
Self Resonant Frequency
2MHz
Series
FP1109
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Weight
0.016oz
Width
0.441inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1109-R33-R Datasheet
Download the complete datasheet for Eaton FP1109-R33-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

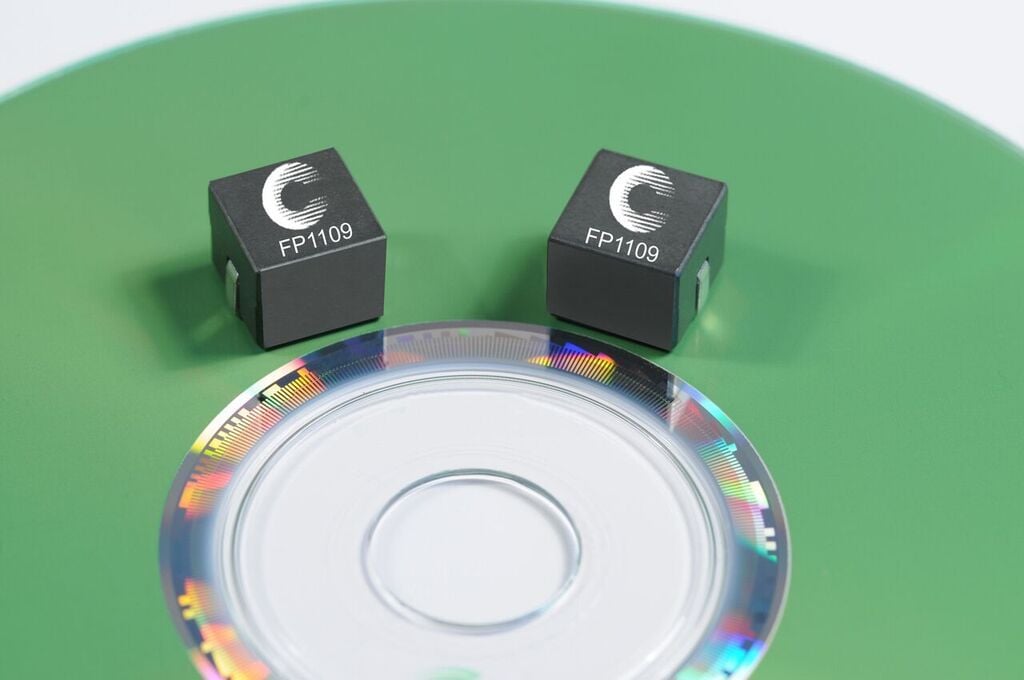

Product Images
