Eaton
FP1208R1-R23-R
Inductor Power Wirewound 0.23uH/0.176uH 10% 100KHz Ferrite 50A 0.00029Ohm DCR T/R
PackageNonstandard
Current Rating50A
MountingSurface Mount
Inductance230nH
Quick Jump:
Technical Specifications
Eaton FP1208R1-R23-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
50A
DC Resistance (DCR)
0.29mR
Height
8mm
Height - Seated (Max)
0.315inch
Inductance
230nH
Length
0.476inch
Max DC Current
61A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
61A
Series
FLAT-PAC, FP1208
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Width
0.315inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1208R1-R23-R Datasheet
Download the complete datasheet for Eaton FP1208R1-R23-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

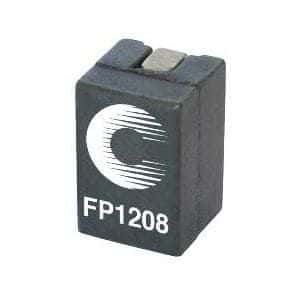

Product Images
