PackageNonstandard
Current Rating53A
MountingSurface Mount
Inductance400nH
Quick Jump:
Technical Specifications
Eaton FP1505R1-R40-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
53A
DC Resistance (DCR)
0.47mR
Depth
7mm
Height
0.197inch
Height - Seated (Max)
0.197inch
Inductance
400nH
Length
0.579inch
Max DC Current
53A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
744
Packaging
Tape and Reel
Radiation Hardening
No
Saturation Current
24A
Series
FLAT-PAC™, FP1505
Shielding
Unshielded
Test Frequency
100kHz
Tolerance
10%
Weight
0.016oz
Width
0.591inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1505R1-R40-R Datasheet
Download the complete datasheet for Eaton FP1505R1-R40-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

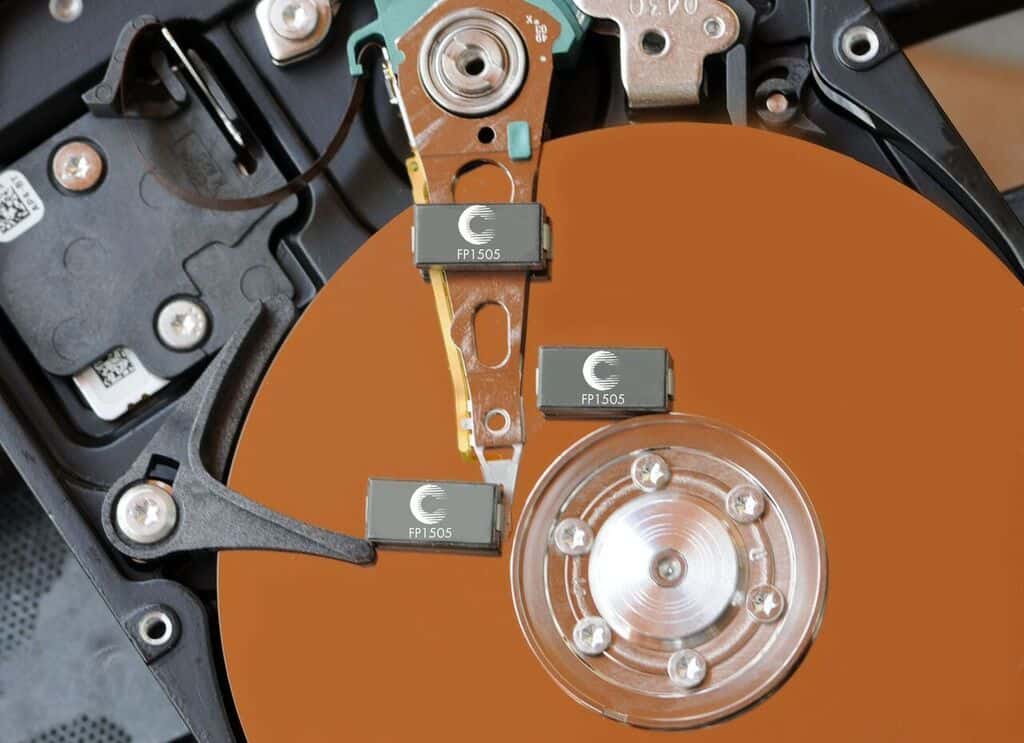

Product Images
