Surface mount general purpose inductor featuring 4.7µH inductance with a 15% tolerance. This powdered iron-core component offers a rated current of 3.23A and a saturation current of 4.2A. Operating across a temperature range of -40°C to 155°C, it has a DC resistance of 40mR. The inductor is supplied on tape and reel, is RoHS compliant, and measures 7.25mm in length, 6.7mm in depth, and 3mm in height.
PackageNonstandard
Current Rating3.23A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Eaton FP3-4R7-R technical specifications.
General
| Package/Case | Nonstandard |
| Coil Resistance | 34.9mR |
| Core Material | Ferrite, Composite |
| Current Rating | 3.23A |
| DC Resistance (DCR) | 40mR |
| Depth | 6.7mm |
| Height | 3mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 15% |
| Lead Free | Lead Free |
| Length | 7.25mm |
| Max DC Current | 4.2A |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1700 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 3.23A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 3.23A |
| RoHS Compliant | Yes |
| Saturation Current | 4.2A |
| Self Resonant Frequency | 2MHz |
| Series | FLAT-PAC 3 |
| Series Resistance | 40mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 15% |
| Type | General Purpose |
| Weight | 0.032oz |
| Width | 0.263inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton FP3-4R7-R Datasheet
Download the complete datasheet for Eaton FP3-4R7-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

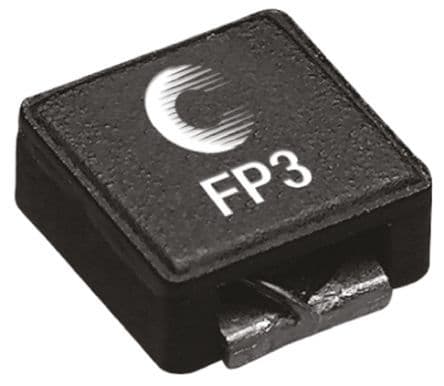

Product Images
