The Eaton GMA-5A fuse holder is a 5A glass body fuse holder with a 5 x 20mm fuse size and a maximum voltage rating of 125V AC and 125V DC. It has a diameter of 5.2mm and a length of 20mm, and is designed for use with fuses rated at 5A. The holder is made of glass and has a clip termination. It is available in a bulk packaging with 5 units per package.
Resistance21mR
Current Rating5A
MountingHolder
Quick Jump:
Technical Specifications
Eaton GMA-5A technical specifications.
General
| Body Material | Glass |
| Current Rating | 5A |
| Diameter | 5.2mm |
| Fuse Current | 5A |
| Fuse Size | 5 x 20mm |
| Length | 20mm |
| Max Voltage Rating (AC) | 125V |
| Mount | Holder |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 21mR |
| RoHS Compliant | No |
| Series | GMA |
| Termination | Clip |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 0.038801oz |
Compliance
| RoHS | Not Compliant |
Datasheet
Eaton GMA-5A Datasheet
Download the complete datasheet for Eaton GMA-5A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

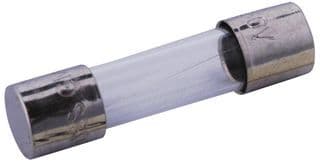

Product Images
