Surface mount fixed inductor featuring 8.2µH inductance with a 20% tolerance, tested at 100kHz. This wirewound power inductor offers a 5.5A current rating and a maximum DC current of 10A, with a low DC resistance of 39.6mΩ. Constructed with a ferrite core, it operates within a temperature range of -40°C to 155°C and is supplied on tape and reel.
PackageNonstandard
Current Rating5.5A
MountingSurface Mount
Inductance8.2uH
Quick Jump:
Technical Specifications
Eaton HC8-8R2-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
5.5A
DC Resistance (DCR)
39.6mR
Depth
10.4mm
Height
4mm
Height - Seated (Max)
0.157inch
Inductance
8.2uH
Lead Free
Lead Free
Length
0.429inch
Max DC Current
10A
Max Operating Temperature
155°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
800
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
10A
Series
HC8
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.096oz
Width
10.4mm
Compliance
RoHS
Compliant
Datasheet
Eaton HC8-8R2-R Datasheet
Download the complete datasheet for Eaton HC8-8R2-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

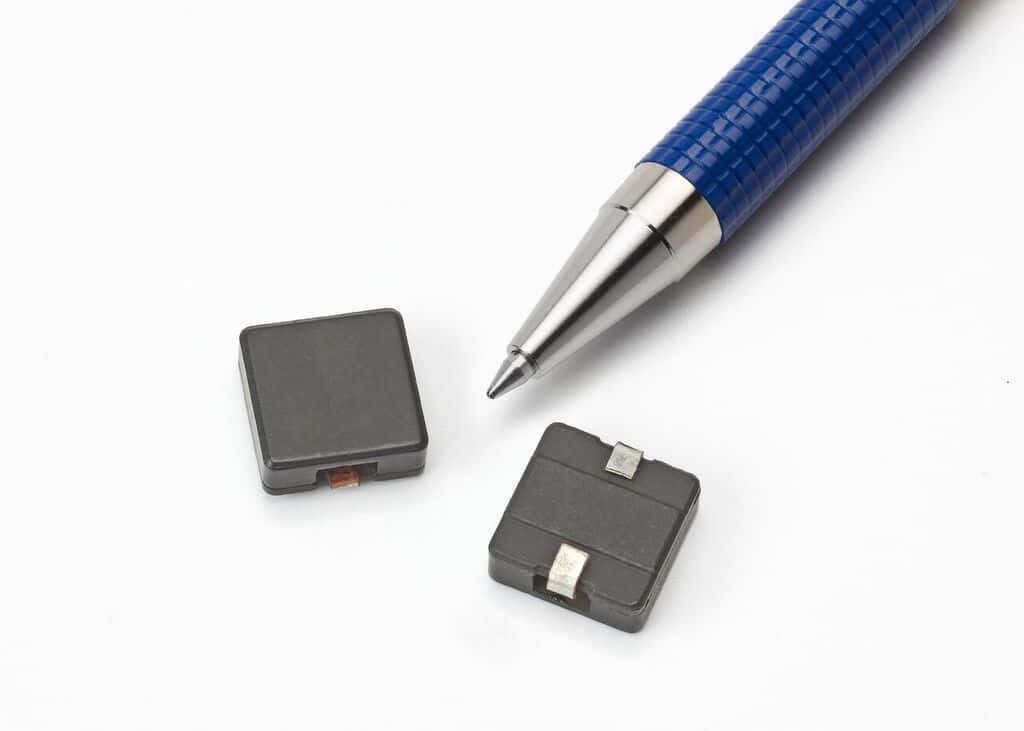

Product Images
