Surface mount fixed inductor featuring a 4.3µH inductance with a 15% tolerance, designed for power applications. This wirewound ferrite core component offers a 13A RMS current rating and a 19.1A saturation current. With a low DC resistance of 5.9mΩ and a test frequency of 100kHz, it operates within a temperature range of -40°C to 155°C. Packaged on tape and reel for automated assembly.
PackageSMD/SMT
Current Rating13A
MountingSurface Mount
Inductance4.3uH
Quick Jump:
Technical Specifications
Eaton HC9-4R3-R technical specifications.
General
Package/Case
SMD/SMT
Core Material
Ferrite
Current Rating
13A
DC Resistance (DCR)
5.9mR
Depth
13.1mm
Height
7.5mm
Inductance
4.3uH
Inductance Tolerance
15%
Lead Free
Lead Free
Length
13.8mm
Max DC Current
19.1A
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RMS Current (Irms)
13A
RoHS Compliant
Yes
Saturation Current
19.1A
Series
HC9
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
15%
Weight
0.256oz
Width
0.515inch
Compliance
RoHS
Compliant
Datasheet
Eaton HC9-4R3-R Datasheet
Download the complete datasheet for Eaton HC9-4R3-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

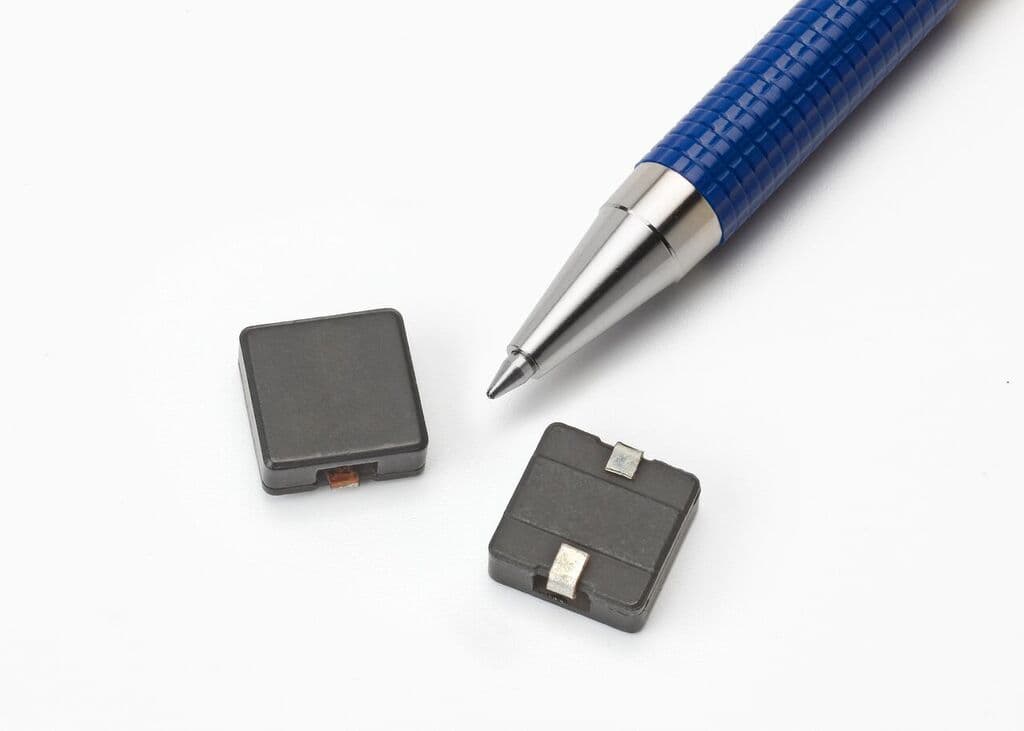

Product Images
