Surface mount fixed inductor featuring a ferrite core with 100µH inductance and 10% tolerance, tested at 100kHz. This unshielded component offers a 360mA current rating and 450mA saturation current, with a DC resistance of 1.72Ω. Operating across a -40°C to 125°C temperature range, it is supplied in tape and reel packaging.
PackageNonstandard
Current Rating360mA
MountingSurface Mount
Inductance100uH
Quick Jump:
Technical Specifications
Eaton LD1-101-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
360mA
DC Resistance (DCR)
1.72R
Depth
4.3mm
Height
3.5mm
Height - Seated (Max)
0.137inch
Inductance
100uH
Length
0.177inch
Max DC Current
360mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
450mA
Series
LD
Shielding
Unshielded
Test Frequency
100kHz
Tolerance
10%
Weight
0.016oz
Width
0.157inch
Compliance
RoHS
Compliant
Datasheet
Eaton LD1-101-R Datasheet
Download the complete datasheet for Eaton LD1-101-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

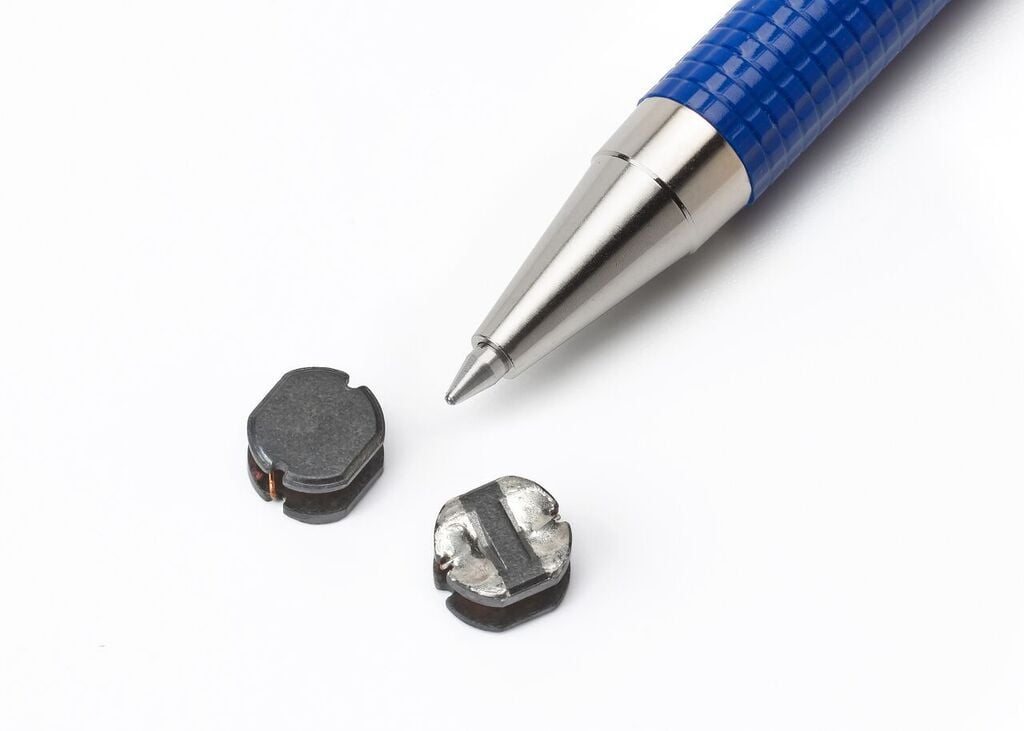

Product Images
