Surface mount fixed inductor featuring a 2.2µH inductance with a 20% tolerance, designed for 100kHz test frequency. This ferrite core component offers a 2.22A current rating and a low 0.047Ω DC resistance. It operates within a -40°C to 125°C temperature range and has a saturation current of 2.76A. The unshielded, nonstandard package measures 4.3mm in depth, 4mm in width, and 0.125 inches in height, supplied in tape and reel packaging.
PackageNonstandard
Current Rating2.22A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Eaton LD1-2R2-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.22A |
| DC Resistance (DCR) | 47mR |
| Depth | 4.3mm |
| Height | 0.125inch |
| Height - Seated (Max) | 0.125inch |
| Inductance | 2.2uH |
| Lead Free | Lead Free |
| Length | 0.177inch |
| Max DC Current | 2.76A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Saturation Current | 2.76A |
| Series | LD |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.016oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Eaton LD1-2R2-R Datasheet
Download the complete datasheet for Eaton LD1-2R2-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

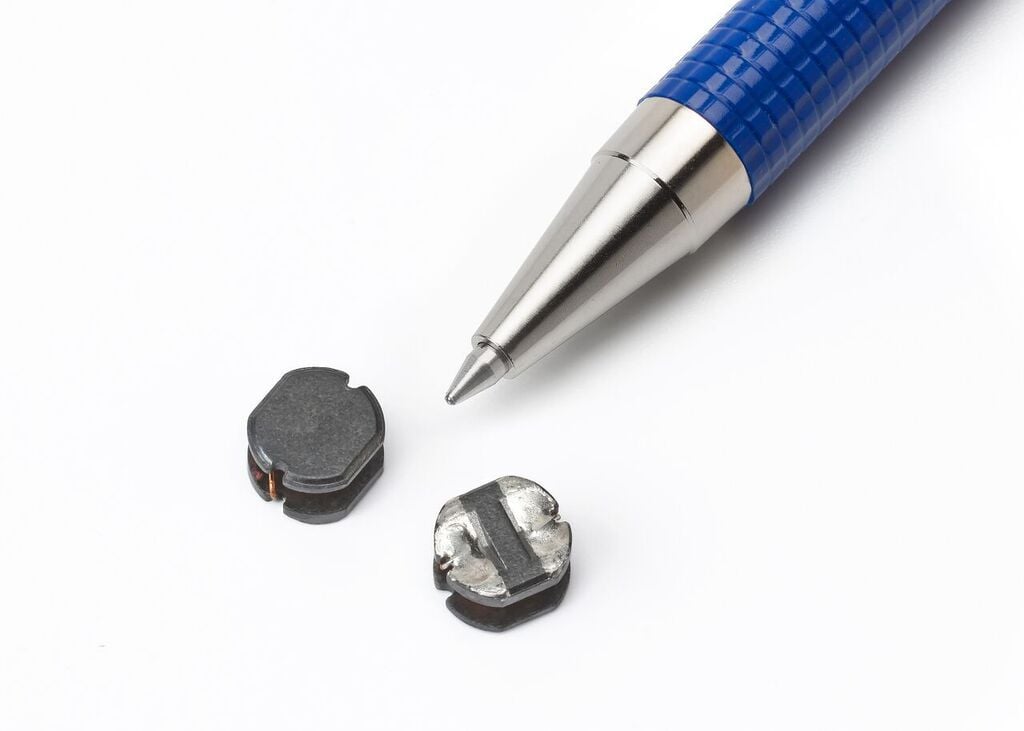

Product Images
