The Eaton S505-10-R is a 250V 10A ceramic fuse holder with a 5 x 20mm fuse size and a DC resistance of 6.1mR. It is designed for use with fuses that have a time delay blow characteristic. The holder is made of ceramic and is available in bulk packaging with 5 units per package. The S505-10-R is compliant with RoHS regulations and is not Reach SVHC compliant. It is approved by several international testing organizations, including CSA, VDE, and cULus.
Resistance6.1mR
Voltage Rating250V
Current Rating10A
MountingHolder
Quick Jump:
Technical Specifications
Eaton S505-10-R technical specifications.
General
| Approvals | CSA, VDE, cULus, CQC, PSE, BSI, SEMKO, IMQ, KC |
| Blow Characteristic | TIME DELAY |
| Body Material | Ceramic |
| Current Rating | 10A |
| DC Cold Resistance | 6.1mR |
| Diameter | 5.2mm |
| Fuse Current | 10A |
| Fuse Size | 5 x 20mm |
| Length | 20mm |
| Max Voltage Rating (AC) | 250V |
| Mount | Holder |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 6.1mR |
| RoHS Compliant | Yes |
| Series | S505 |
| Termination | Clip |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.038801oz |
Compliance
| RoHS | Compliant |
Datasheet
Eaton S505-10-R Datasheet
Download the complete datasheet for Eaton S505-10-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

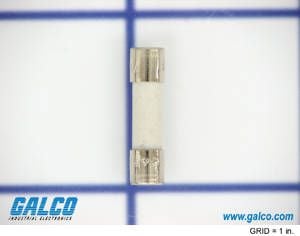

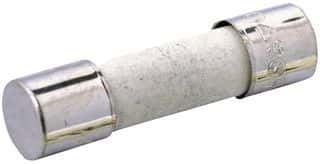

Product Images
