Surface mount fixed inductor featuring a shielded drum core with 47µH inductance and 20% tolerance, tested at 100kHz. This ferrite core component offers a maximum DC current of 406mA and a DCR of 0.465 Ohms. Designed for surface mount technology, it is housed in a 2020 package with dimensions of 5.2mm x 5.2mm x 2mm. Operating within a temperature range of -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
Package2020
Inductance47uH
Quick Jump:
Technical Specifications
Eaton SD20-470-R technical specifications.
General
| Package/Case | 2020 |
| Core Material | Ferrite |
| Height | 2mm |
| Inductance | 47uH |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max DC Current | 406mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 2900 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | SD |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.016oz |
| Width | 5.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Eaton SD20-470-R Datasheet
Download the complete datasheet for Eaton SD20-470-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

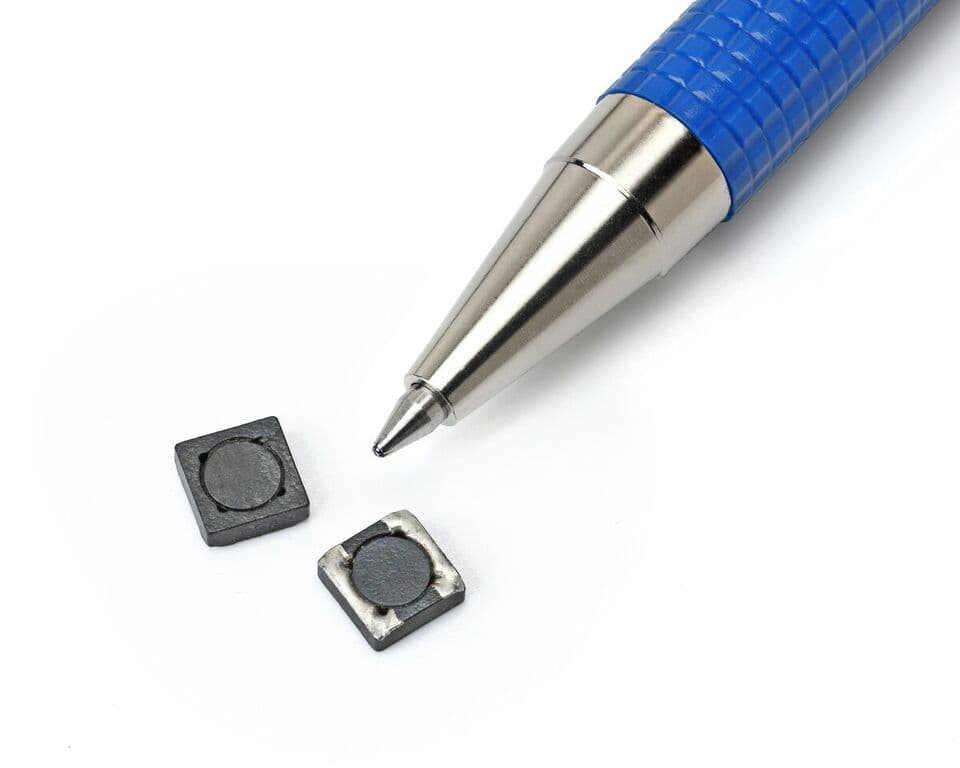

Product Images
