Eaton
SD20-681-R
Inductor Power Shielded Drum Core 681.2uH/680uH 20% 100KHz Ferrite 0.216A 5.56Ohm DCR 2020 T/R
PackageNonstandard
Current Rating216mA
MountingSurface Mount
Inductance680uH
Quick Jump:
Technical Specifications
Eaton SD20-681-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
216mA
DC Resistance (DCR)
5.56R
Height
2mm
Height - Seated (Max)
0.079inch
Inductance
680uH
Lead Free
Lead Free
Length
0.204inch
Max DC Current
107mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2900
Packaging
Tape and Reel
Saturation Current
107mA
Series
SD
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.016oz
Width
5.2mm
Compliance
RoHS
Compliant
Datasheet
Eaton SD20-681-R Datasheet
Download the complete datasheet for Eaton SD20-681-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

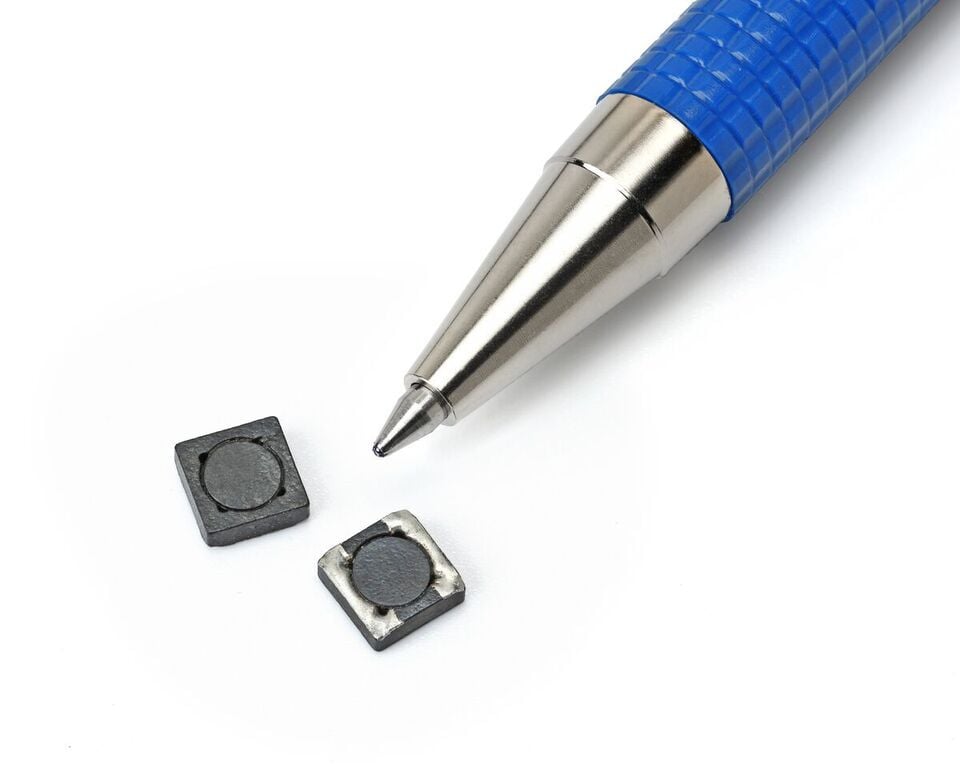

Product Images
