Surface mount shielded drum core inductor with 3.3µH inductance and 20% tolerance, rated for 2.26A maximum DC current. Features a ferrite core, 34mΩ DC resistance, and a 2020 package size. Operates from -40°C to 125°C and is supplied on tape and reel.
Package2020
Current Rating2.26A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Eaton SD53-3R3-R technical specifications.
General
| Package/Case | 2020 |
| Core Material | Ferrite |
| Current Rating | 2.26A |
| DC Resistance (DCR) | 34mR |
| Depth | 5.2mm |
| Height | 3mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 3.3uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max DC Current | 2.26A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 2.26A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.26A |
| RoHS Compliant | Yes |
| Saturation Current | 2.6A |
| Series | SD53 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.016oz |
| Width | 0.204inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton SD53-3R3-R Datasheet
Download the complete datasheet for Eaton SD53-3R3-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

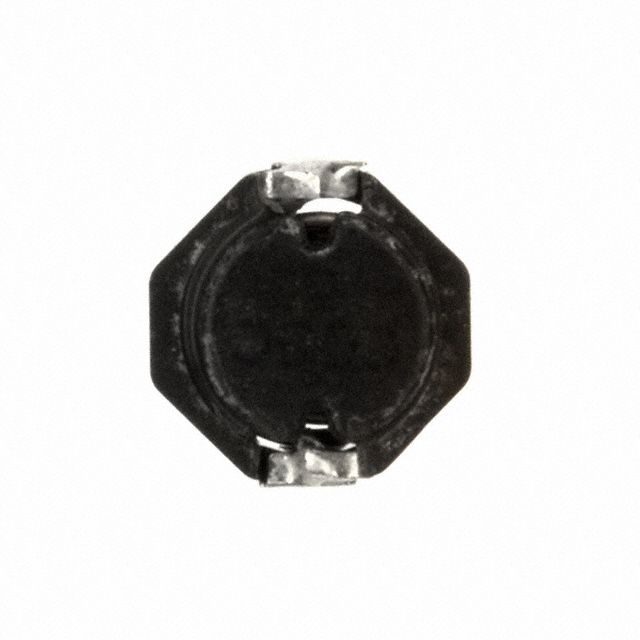

Product Images
