Eaton
SS-5H-1A-APH
Electric Fuse, Time Delay Blow, 1A, 300VAC, 100A (IR), Through Hole, HALOGEN FREE AND ROHS COMPLIANT
PackageRadial
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Eaton SS-5H-1A-APH technical specifications.
General
Approvals
VDE, TUV, cURus, CQC, PSE, KC
Blow Characteristic
TIME DELAY
Package/Case
Radial
Current Rating
1A
Fuse Current
1A
Height
0.337inch
Length
0.335inch
Mount
Through Hole
Package Quantity
1
Packaging
Cut Tape
Reach SVHC Compliant
Unknown
Series
SS-5H
Voltage Rating (AC)
300V
Width
0.17inch
Compliance
RoHS
Compliant
Datasheet
Eaton SS-5H-1A-APH Datasheet
Download the complete datasheet for Eaton SS-5H-1A-APH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

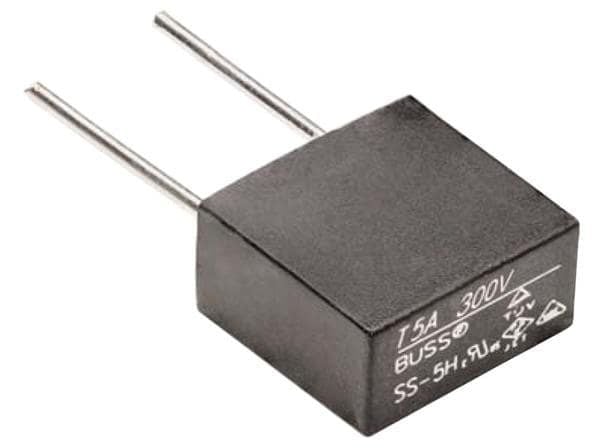

Product Images
