Surface mount fixed inductor featuring 100µH inductance with a 20% tolerance, tested at 100kHz. This wirewound component utilizes a ferrite core and offers a 2A rated current with a 3.6A saturation current. It has a low DC resistance of 170mΩ and operates within a temperature range of -40°C to 85°C. Packaged on tape and reel, this unshielded inductor is lead-free.
PackageNonstandard
Current Rating2A
MountingSurface Mount
Inductance100uH
Quick Jump:
Technical Specifications
Eaton UP4B-101-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2A
DC Current
2A
DC Resistance (DCR)
170mR
Depth
15mm
Height
7.87mm
Height - Seated (Max)
0.309inch
Inductance
100uH
Lead Free
Lead Free
Length
22.1mm
Max DC Current
2A
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
275
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
2A
Saturation Current
3.6A
Series
UNI-PAC™
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.224oz
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Eaton UP4B-101-R Datasheet
Download the complete datasheet for Eaton UP4B-101-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

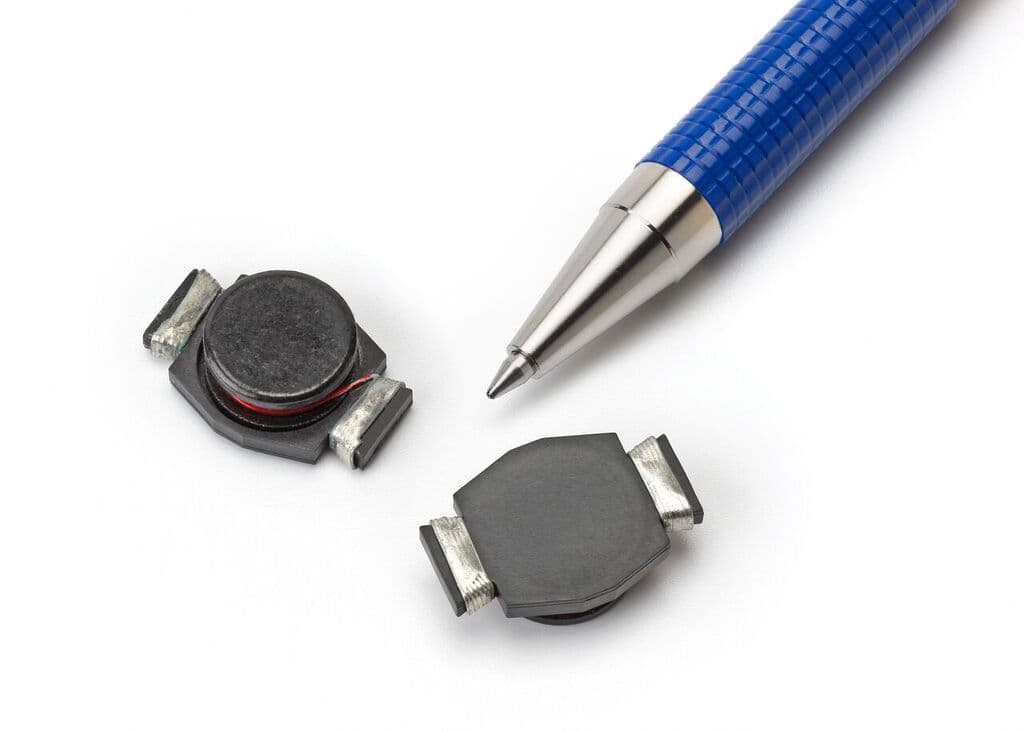

Product Images
