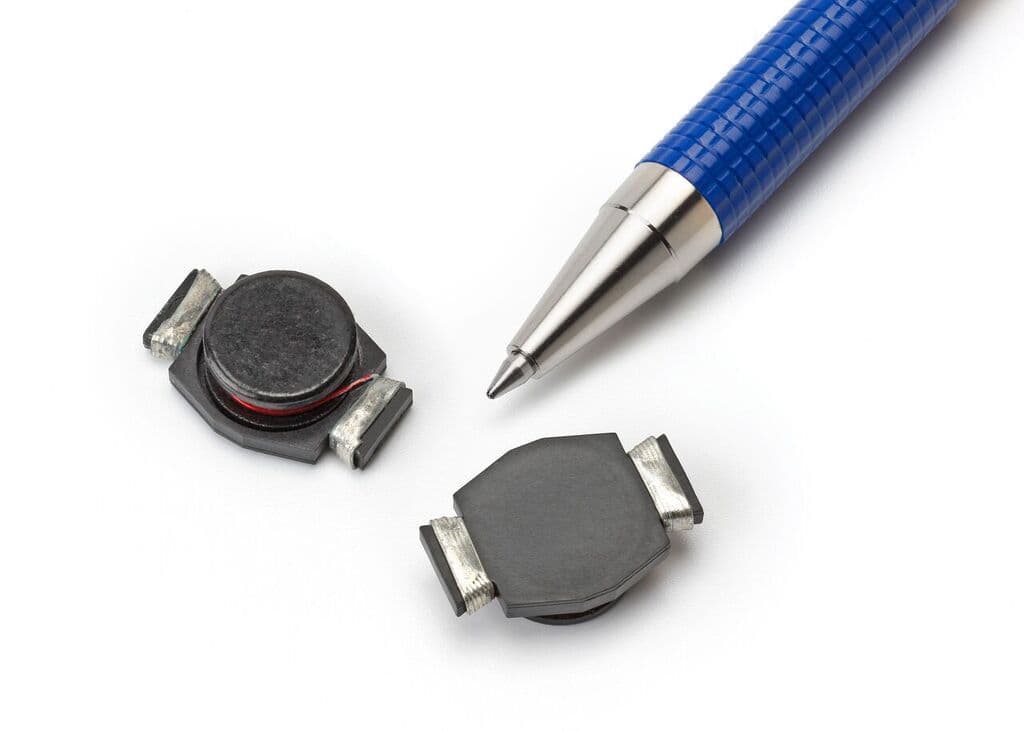

Surface mount general purpose fixed inductor with 22 µH inductance and 20% tolerance. Features a ferrite core, 4.5A DC current rating, and 7.6A saturation current. Operates within a -40°C to 85°C temperature range with a low DC resistance of 34mΩ. Packaged on tape and reel, this RoHS compliant component is designed for surface mounting.
PackageNonstandard
Current Rating4.5A
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Eaton UP4B-220-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
4.5A
DC Current
4.5A
DC Resistance (DCR)
34mR
Depth
15mm
Height
7.87mm
Height - Seated (Max)
0.309inch
Inductance
22uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
22.1mm
Max DC Current
4.5A
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
275
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
4.5A
Reach SVHC Compliant
No
RMS Current (Irms)
4.5A
RoHS Compliant
Yes
Saturation Current
7.6A
Series
UNI-PAC™
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.048oz
Width
0.59inch
Compliance
RoHS
Compliant
