Axial DC fan with ball bearing, operating at 24V and consuming 1.6W. Delivers 23.5 CFM airflow at 5900 RPM, with a noise level of 34 dBA. Features flange mounting and lead wire termination, constructed from plastic with dimensions of 60mm x 60mm x 25.4mm. Rated IP68 for waterproof and dust-tight operation, suitable for temperatures from -20°C to 70°C.
FrequencyNot RequiredHz
PackageAxial
Voltage Rating24V
MountingFlanges
Quick Jump:
Technical Specifications
Ebm-Papst 634NU-004 technical specifications.
General
| Airflow | 23.5CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 60mm |
| Height | 60mm |
| Length | 60mm |
| Material | Plastic |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 1.6W |
| Mount | Flanges |
| Noise | 34dBA |
| Noise Level | 34dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Power Consumption | 1.6W |
| Radiation Hardening | No |
| Ratings | IP68, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RPM | 5900RPM |
| Series | 630U |
| Speed | 5900RPM |
| Termination | Lead Wire |
| Voltage Rating | 24V |
| Weight | 0.154lb |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 634NU-004 Datasheet
Download the complete datasheet for Ebm-Papst 634NU-004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

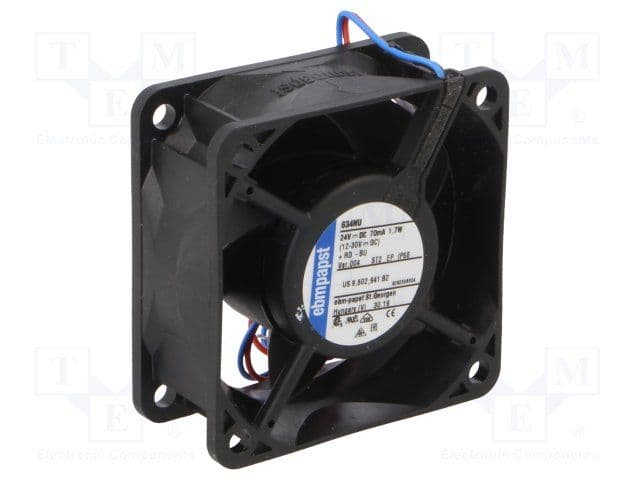

Product Images
