Current Rating250mA
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications

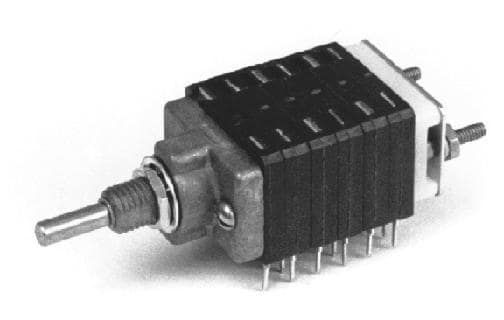

Electroswitch C2P0404N-A technical specifications.
General
| Actuator Length | 9.52mm |
| Contact Material | Brass |
| Contact Plating | Silver |
| Current Rating | 250mA |
| Index Angle | 30° |
| Index Stops | Adjustable |
| Lead Free | Lead Free |
| Mount | Through Hole, Panel |
| Number of Decks | 2 |
| Number of Poles per Deck | 2 |
| Package Quantity | 1 |
| Series | C2 |
| Termination | PC Pin |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Electroswitch C2P0404N-A Datasheet
Download the complete datasheet for Electroswitch C2P0404N-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
