Technical Specifications
Elesta SIS11224VDC technical specifications.
General
Application(s)
POWER
Coil Resistance
2.1kR
Coil Voltage (DC)
24V
Contact Material
Copper, Gold, Silver
Depth
16.6mm
Height
16.5mm
Length
29.2mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
PCB
RoHS Compliant
No
Termination
Through Hole
Throw Configuration
DPST
Compliance
RoHS
Not Compliant
Datasheet
Elesta SIS11224VDC Datasheet
Download the complete datasheet for Elesta SIS11224VDC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

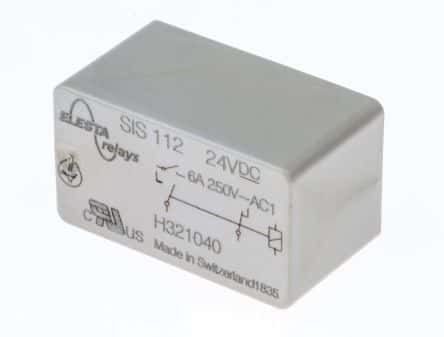

Product Images
