Technical Specifications
Elna DB-5R5D224T technical specifications.
General
| Capacitance | 220mF |
| Package/Case | Radial |
| Diameter | 13.5mm |
| ESR (Equivalent Series Resistance) | 75R |
| Height | 7.5mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 7.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | DB |
| Termination | PC Pins |
| Tolerance | 80% |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Elna DB-5R5D224T Datasheet
Download the complete datasheet for Elna DB-5R5D224T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

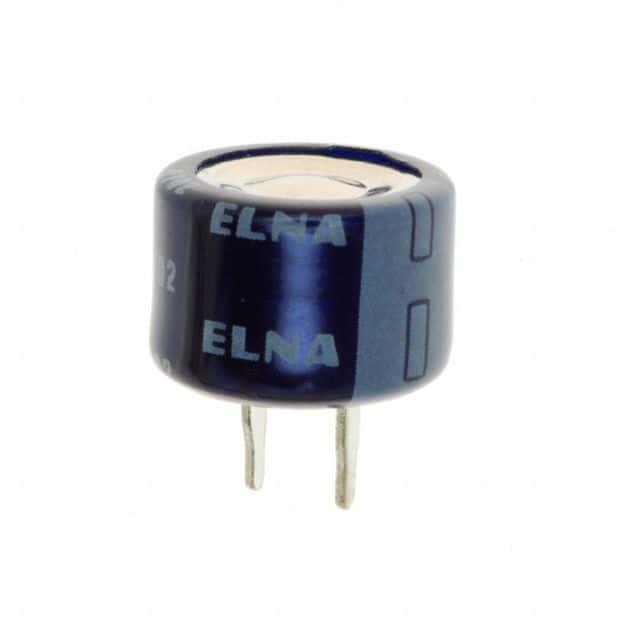

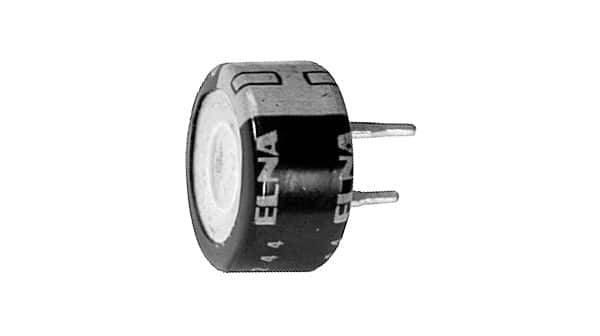

Product Images
