Board mount DC/DC converter, 90W, 1.8V nominal output voltage, delivering up to 50A output current. Features include over-voltage protection (OVP) and over-temperature protection (OTP). Operates with an input voltage range of 250V to 420V DC, with a nominal operating supply voltage of 300V. Isolation voltage is rated at 3kV. This module-style converter offers 80% efficiency and a wide operating temperature range from -20°C to 100°C.
PackageModule
Current Rating50A
MountingThrough Hole
Power250W
Quick Jump:
Technical Specifications
Emerson AIH50Y300-L technical specifications.
General
Package/Case
Module
Current Rating
50A
Depth
61mm
Efficiency
80%
Features
OVP, OTP
Height
0.55inch
Isolation Voltage
3kV
Length
2.4inch
Max Input Voltage (DC)
420V
Min Input Voltage (DC)
250V
Max Input Voltage
420V
Min Input Voltage
250V
Max Operating Temperature
100°C
Min Operating Temperature
-20°C
Max Output Current
50A
Max Output Power
90W
Max Power Dissipation
90W
Mount
Through Hole
Nominal Output Voltage
1.8V
Number of Outputs
1
Operating Supply Voltage
300V
Output Current
50A
Output Power
250W
Output Voltage
1.8V
Package Quantity
64
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AIH
Voltage - Output 1
1.8V
Width
2.3inch
Compliance
RoHS
Compliant
Datasheet
Emerson AIH50Y300-L Datasheet
Download the complete datasheet for Emerson AIH50Y300-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

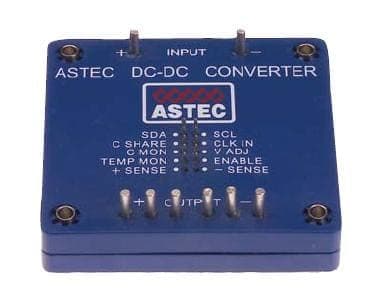

Product Images
