Enclosed AC/DC power supply, 250W maximum output power, featuring four independent outputs. Output 1 delivers 5V at 35A, Output 2 provides 15V at 10A, and Output 3 offers -15V at 6A. A fourth output is also rated at -15V. Operating from 85-264V AC input, this chassis mount unit boasts 75% efficiency and a panel mount design. Dimensions are 10.32 inches (length) x 5 inches (width) x 2 inches (height), with a weight of 1.41kg.
MountingPanel
Power250W
Quick Jump:
Technical Specifications
Emerson GLQ253-C technical specifications.
General
Current - Output 1
35A
Current - Output 2
10A
Current - Output 3
6A
Depth
127mm
Efficiency
75%
Height
2inch
Length
10.32inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Max Output Current
6A
Max Output Power
250W
Mount
Panel
Nominal Output Voltage
25V
Number of Outputs
4
Output Current
35A
Output Power
250W
Output Voltage
5V
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Voltage - Output 1
5V
Voltage - Output 2
15V
Voltage - Output 3
-15V
Voltage - Output 4
-15V
Weight
1.41kg
Width
5inch
Compliance
RoHS
Compliant
Datasheet
Emerson GLQ253-C Datasheet
Download the complete datasheet for Emerson GLQ253-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

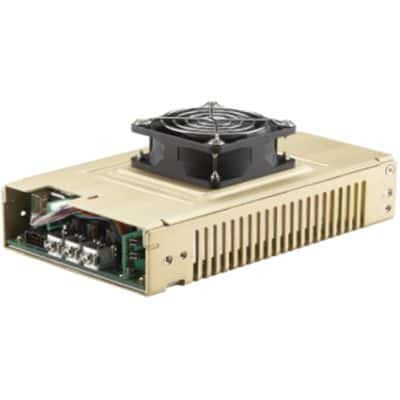

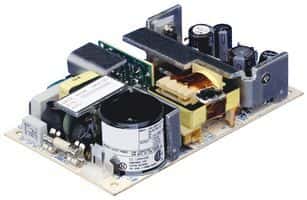

Product Images
