15V, 40W AC/DC converter featuring a single output and 3A maximum output current. This chassis mount power supply operates with a universal input voltage range of 90-264V AC and achieves 87% efficiency. It boasts a wide operating temperature range from 0°C to 50°C and holds multiple international approvals including UL, CSA, CE, and TUV. Dimensions are 101.6mm (L) x 50.8mm (D) x 25.4mm (H), with a weight of 0.1kg.
MountingChassis Mount
Power40W
Quick Jump:
Technical Specifications
Emerson NPS24M technical specifications.
General
Approvals
UL, CSA, CE, TUV, CB, CQC, NEMKO
Current - Output 1
1.7A
Depth
50.8mm
Efficiency
87%
Height
1inch
Length
101.6mm
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Max Output Current
3A
Max Output Power
40W
Max Power Dissipation
40W
Mount
Chassis Mount
Nominal Output Voltage
15V
Number of Outputs
1
Output Current
3A
Output Power
40W
Output Voltage
15V
Package Quantity
70
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Series
NPS20-M
Voltage - Output 1
15V
Weight
0.1kg
Width
2inch
Compliance
RoHS
Compliant
Datasheet
Emerson NPS24M Datasheet
Download the complete datasheet for Emerson NPS24M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

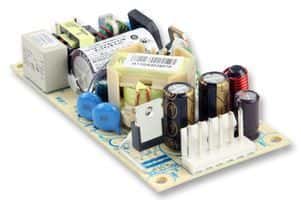

Product Images
